Replacing the controller on your electric bike might sound daunting, but it's absolutely doable with some guidance.
As a veteran e-bike rider and mechanic, I'll walk you through the process and share some tips and tricks from experience.
By following these detailed steps, you can perform a controller replacement on a typical commuter electric bike and get back on the road with a reliable ride.
We’ll cover everything – ensuring compatibility with a universal model controller, gathering tools, safety precautions, step-by-step installation, and testing.
Whether you’re a seasoned DIY enthusiast or a beginner, this guide will help you swap out your e-bike’s “brain” confidently and safely.
Quick Summary: Replacing an E-Bike Controller
In a nutshell, here are the main steps to replace your e-bike’s controller:
-
Disconnect Power and Prepare: Always turn off the bike and disconnect the battery first for safety. Set the bike on a stable stand and gather your tools.
-
Remove the Old Controller: Locate the controller (usually in the frame or battery housing), take off any covers, label all wiring, then unplug each connector one by one. Unscrew the mounting brackets and carefully remove the old unit.
-
Install the New Controller: Mount the new controller in place of the old one, using the same orientation and brackets. Connect all the wires to the new unit, matching the labels or color codes. Splice or adapt connectors if necessary for a universal model replacement.
-
Test and Verify: Reattach the battery and power on the system. Check for error codes or unusual behavior. If all looks good, take a slow test ride to ensure the motor, throttle, and pedal assist work properly. Address any issues or loose connections before riding normally.
Why Replace Your E-Bike Controller?
The e-bike controller is essentially the bike’s brain – it manages power flow from the battery to the motor and coordinates your throttle and pedal-assist inputs.
When it fails or underperforms, your bike can act up. You might consider replacing the controller if you’re experiencing issues like:
-
Intermittent Power or Cut-Outs: The motor loses power or the bike shuts off unexpectedly, even with a charged battery.
-
Throttle or PAS Malfunctions: The throttle might stop responding, or the pedal-assist behaves erratically. Error codes on your display (if your bike has one) often point to controller faults.
-
Overheating or Strange Noises: A controller that frequently gets too hot or makes odd buzzing noises is a red flag. Overheating can indicate internal damage or an overloaded controller.
Beyond fixing problems, some riders upgrade controllers for better performance.
A new or higher-quality controller can smooth out acceleration, improve top speed, and even extend battery life by operating more efficiently.
Newer controllers often have extra features like customizable power settings and improved waterproofing for reliability.
If you ride daily on a commuter e-bike, having a robust controller is crucial for safety and consistent performance.
Over years of bumps and weather exposure, wiring and components wear out, so replacing the controller can restore lost performance and prevent unpredictable behavior.
Can you do it yourself? Absolutely.
Most e-bike owners with basic mechanical skills can replace a controller at home. I remember the first time I swapped a controller on my bike – I was nervous, but taking it step by step made it manageable. The key is to stay organized and patient.
By catching issues early and installing a compatible new controller, you’ll save on repair costs and keep your bike running smoothly.
Next, we’ll make sure you choose the right replacement unit for compatibility with your bike.
Related: Electric Bike Controller Failure: Causes, Symptoms, and Solutions
Choosing the Right Replacement Controller (Compatibility Tips)
Picking a replacement controller requires a bit of research to ensure everything will work together. Here’s how to choose a compatible controller – often, riders opt for a universal model that can fit many e-bikes:
Match the Voltage and Power
Check your bike’s battery voltage (e.g. 36V or 48V) and motor wattage. Your new controller must support that voltage range and at least the motor’s wattage or higher.
For example, a universal 36V/48V controller can handle most standard commuter bike setups.
Always confirm the new controller’s specs (voltage, continuous current limit) meet your e-bike’s requirements.
Using an under-specced controller could lead to overheating, while an over-specced one is fine as long as it’s configured correctly.
Connector Types and Wiring
Examine the wiring harness on your bike and the connector types (for motor phases, battery, throttle, brakes, display, etc.). It’s rare to find a new controller with identical connectors to an old one, especially if it’s from a different brand.
Be prepared to adapt connectors – many universal controllers come with generic connectors or even bare wire leads so you can match them to your bike’s wiring.
In my experience, color-coding is usually standard (e.g. yellow/green/blue for motor phase wires, red/black for battery, etc.), but always verify.
If connectors differ, you may need to crimp or solder new connectors onto the wires and use heat-shrink tubing for insulation.
Don’t worry if it looks intimidating; as one DIY rider notes, an e-bike really only needs a few main connections – “power in, phase wires, and some way to control the motor” – the rest (like fancy displays or lights) are secondary.
Sensor and Display Compatibility
This is a crucial point. Many stock e-bikes use proprietary communication between the controller and the display or pedal-assist sensor (PAS).
A generic replacement might not “speak the same language” to the original display. For instance, some controllers won’t work with the original PAS magnet disc or display unit on a bike unless you change those as well.
If your new controller is not the exact same model as the old, be ready to replace the display and PAS sensor with the ones that come with the controller or ensure the new controller supports your existing ones.
(Some universal kits include a simple LED/LCD display and a matching PAS sensor to avoid compatibility issues.)
The good news: basic functions like throttle and motor will usually work as long as you connect the wires correctly, even if you don’t use a high-end display.
In fact, many universal controllers can run the bike without any display at all – they default to a standard assist mode if you plug in a special jumper or leave the display connector unused.
Motor Type (Hall vs. Sensorless)
Most modern e-bikes have brushless hub motors with Hall sensor wires.
Make sure the controller supports Hall sensors (most do) or can run in sensorless mode if a sensor fails.
Some universal controllers will automatically switch to sensorless mode if they detect no Hall signal, so the bike can still run even if those sensors are bad.
This is a nice feature if you suspect your motor’s sensors might be damaged. If your bike has a geared hub or direct-drive hub, that generally doesn’t affect controller choice, but mid-drive motors typically need specific controllers – this guide focuses on hub motors which are common in commuter e-bikes.
In summary, do your homework on the specs. I like to jot down all the connectors and features of the old controller (like does it have brake cut-off wires? lights? PAS?) and ensure the new one has the same.
When buying a universal model replacement, read the product description carefully for supported voltages and any notes on displays or sensors needed.
One example is a 36V/48V generic controller that claims it can “repair most original Asian electric bikes with a brushless motor” – it runs 250W motors easily and even works if the motor’s Hall sensors are faulty.
However, even that unit warns that it won’t work with an original display or pedal sensor from another bike without changing those too.
The takeaway: aim to match your new controller to your bike’s system as closely as possible, or be ready to swap a few peripheral parts for full compatibility. With the right controller in hand, we can move on to preparing for the installation.
Preparing for the Controller Replacement (Tools & Safety)
Before diving into the wrenching, let’s get everything set up for a smooth replacement job. Preparation is half the battle:
Safety First: Always start by turning off your e-bike and removing the battery entirely. Never work on the controller with live power.
I take the battery off the bike and set it aside in a safe place.
If your bike has a main switch or circuit breaker, turn that off too. This prevents accidental shocks or shorts while you tinker.
I also like to press the power button after removing the battery (if the bike has a residual charge, this can discharge any capacitors in the controller).
Work in a dry area, preferably indoors or in shade – no rain or water around. Consider wearing insulated work gloves and safety glasses, especially if you’ll be cutting or soldering wires.
A clean, uncluttered workspace is important so you don’t misplace screws or drop small parts.
Tools and Materials You’ll Need
Gather your toolkit before you start. Here’s a checklist of common tools and supplies for e-bike controller swaps:
-
Screwdrivers (typically a Phillips head, and possibly hex/Allen wrenches if your controller is secured with hex bolts).
-
A small adjustable wrench or specific sized wrench (often 8mm or 10mm) to undo any nuts holding the controller or its housing. For example, on some bikes the controller is in a case with small nuts and bolts – I use a mini wrench to hold the nut while unscrewing the bolt.
-
Wire cutters or snips – these are for cutting zip-ties and possibly wires if you need to splice connectors. (Be very careful only to cut zip-ties, not the wires they hold!)
-
Pliers (regular or needle-nose) – useful for pulling connectors apart gently and holding things.
-
Electrical tape and/or heat shrink tubing – to insulate any new wire joints if you have to splice wires. Heat shrink is better for durability; you’ll need a heat source to shrink it (a soldering iron side or lighter works in a pinch).
-
Soldering iron and solder (optional) – if you plan to solder on new connectors or wires. If you’re not comfortable soldering, you can use crimp connectors or twist-and-tape as a last resort, but solid connections are better.
-
Zip ties (a few new ones) – you’ll cut the old cable ties and will want to tidy up the wiring with new zip ties when reassembling.
-
A multimeter (optional but recommended) – to verify voltage or check continuity in wires if something isn’t working. Not always needed, but can help troubleshoot issues after installation.
-
Masking tape and a pen for labeling wires. Little write-on cable labels or colored tapes work too.
-
Camera or smartphone – extremely handy to take photos at each step before you unplug things. Trust me, you will thank yourself later when you forget which connector went where.
Lay these tools out on a workbench or table near your bike. It’s frustrating to be mid-way and searching for a tool.
I also keep a small container or tray for screws and tiny parts – when you remove screws or nuts, drop them in the tray so they don’t roll away (I’ve lost my fair share of bolts on a messy garage floor).
Having everything organized reduces the chance of mistakes and stress during the repair.
Bike Setup
Position your bike stably. If you have a repair stand, mount the bike so you can work comfortably.
If not, no worries – you can flip the bike upside down onto the handlebars and saddle (put a towel to avoid scratches), or lean it against a wall. The key is that it won’t tip over while you’re wrenching.
Remove any accessories that block access to the controller area. For example, if the controller is under a battery rack or behind a cover, you might need to take off the bike’s rear rack or open a panel.
Clear some space around the bike to move freely. Good lighting is essential – use a work light or do the job in daylight so you can clearly see wire colors and tiny connectors inside dark nooks of the bike frame.
Documentation
Before touching any wires, take a clear photo of the controller and all the wires going into it. I like to get a close-up of each connector if possible.
If wires are bundled, snap a pic after cutting any zip ties but before unplugging things. These images will be your reference when hooking up the new controller.
Also, as you disconnect cables, label them with tape (e.g., mark which plug goes to the motor, which to the battery, throttle, brakes, etc.).
Many controllers have labels or distinctive connectors, but some have multiple similar 3-pin plugs, so labeling prevents guesswork later.
It takes a few minutes now, but it can save hours of headache afterward.
With safety precautions in place and tools at the ready, we’re prepared to actually swap the controller. Let’s jump into the step-by-step procedure.
Related: How to Wire or Rewire a Rear Hub Motor Electric Bike
Step-by-Step Guide: Replacing Your E-Bike Controller
Now I’ll guide you through replacing the controller on a typical hub-motor commuter e-bike. Stay with me, and remember to refer to your photos and labels as you go. Here’s the process I follow:
Step 1: Disconnect the Battery and Power Down
I start by double-checking that the bike’s power is completely off.
Remove the key and battery from the bike. After taking the battery out, I often press the bike’s power button or squeeze the brake (some bikes’ brake lights drain residual power) just to ensure nothing is lingering in the circuits.
Never skip this step – working on a live e-bike controller is dangerous and can short out components.
Once powered down, I feel safe to proceed. The bike should remain off until the new controller is fully installed and you’re ready to test.
Step 2: Locate and Expose the Controller
Next, find your controller’s location.
On many commuter electric bike models, the controller is a rectangular metal box tucked under the frame’s downtube or seat tube, or inside a battery mounting rack, or behind a plastic panel near the pedals.
Look for a bundle of wires coming out of a small box – that’s a telltale sign. If you’re unsure, trace the thick cable from the motor wheel; it usually leads to the controller box.
Once located, remove whatever enclosure or mounting is covering it. This could mean unscrewing a plastic cover or plate.
For instance, I had to remove two screws and a couple of plastic tabs on a panel under the rear rack to slide out the controller housing on one bike.
Use the appropriate screwdriver or Allen key to carefully undo these fasteners. Keep those screws safe in your tray.
If there are nuts on the backside, use your small wrench to hold them while you turn the screws. After removing the cover, you should see the controller and a bunch of wires connected to it.
At this point, it’s common to find zip ties securing the wiring in place. Go ahead and cut any zip ties that are holding the controller cables to the bike frame or bundling wires together.
Use your wire cutters and be gentle – only cut the tie, not the wires! Freeing these ties will give you slack to pull the controller out and access connectors. Once the area is open and wires are loose, you can likely slide the controller unit out a bit to see the connectors clearly.
Step 3: Label and Disconnect the Wires
Now the meticulous part: disconnecting everything without mixing up connections. Before unplugging anything, if you haven’t already, apply labels to each wire or connector.
I’ll put a small piece of masking tape on each and write something like “Motor Phase”, “Battery +”, “Left Brake”, “Display” etc., based on where they go.
Many controllers have distinct connector shapes (for example, the motor hall sensor might be a 5-pin connector, the throttle a 3-pin, etc.), but it’s still wise to label. Start at the top or one side and label each cable one by one.
With labeling done, begin disconnecting the plugs. Disconnect one connector at a time, and do it gently.
Most e-bike connectors are keyed plastic plugs that pull apart; some have little locking tabs you press to unplug.
I usually start with the easy ones: unplug the brake sensor wires, the throttle, the display, etc. As you remove each, double-check your label is on the correct cable for later.
The motor cable is often the thickest set – you’ll have big phase wires (yellow/green/blue) and a multi-wire hall sensor plug if applicable.
Unplug those carefully, checking for any clip or screw coupling (some motor cables have a threaded connector).
The battery cables might be a pair of thick wires often screwed into terminals or using a special connector (like XT60 or Anderson plug).
If your battery leads are hardwired, you may have screws securing them to the controller; loosen those screws to free the battery wires last.
Important: avoid yanking wires by the cord; grip the plastic connector or use pliers to wiggle them out if tight.
While disconnecting, I make sure the cables don’t spring back into the frame or get tangled.
Taking photos throughout this process is super helpful – after removing each connector, I snap a quick picture of the wiring layout from another angle. This way, I have a visual map of which cable went to which port on the old controller. It’s like leaving breadcrumbs to follow later.
Within a few minutes, all the cables should be unplugged from the old controller.
Typical ones include: motor phase wires (3 thick wires), motor sensor cable (if present), battery input (2 wires, often red positive and black negative), throttle (3 wires), pedal assist sensor (3 wires), brake cut-off sensors (2 wires each brake), display cable, and perhaps wires for lights or horn if your bike has those.
It sounds like a lot, but remember what the Reddit DIYer said – many of these aren’t strictly needed to run the bike; the core is battery and motor connections. Still, we’ll hook them all up for full functionality.
After everything is unplugged, you might see the old controller hanging free or still fixed in place by screws. Before removing it, check around for any remaining attachments. Some controllers are held by clamps, brackets, or sticky foam pads.
Related: Adapting an E-Bike Cable System to a New Controller (Complete Guide)
Step 4: Remove the Old Controller Unit
With wires disconnected, it’s time to take the old controller out. If it’s mounted by screws or a bracket, remove those now.
For example, there might be two small bolts holding the controller to the frame or inside a housing. Unscrew them with the correct driver.
Support the controller with your hand as you remove the last screw so it doesn’t drop. (Try not to drop it like I’ve done in the past – not only can it be damaged, but you also don’t want to nick your frame or toes! Instead, catch it or have a cloth below.)
Save any brackets or mounting hardware because you may reuse them for the new controller.
Now gently pull the old controller out of its cavity. Sometimes the space is tight; you may need to rotate or wiggle it out around other wires.
Remember how it was oriented (take another photo if needed). Many controllers have cooling fins or a flat side – note which side was facing outward or if any part was touching the frame.
Remove any rubber padding or insulation that was around it; you might reuse that as well if it helps secure the new unit.
I like to put the old controller aside on the bench and have a quick look at it. You’ve already labeled the wires you disconnected, which are still attached to the bike’s harness.
The old unit may have some identification (voltage, amps) on it – compare that to your new controller’s specs to verify you got a suitable replacement.
If the old one had an obvious failure (burn marks or a burnt smell), you can be satisfied that replacing it was the right move.
Now the stage is set to install the new controller.
Step 5: Fit the New Controller in Place
Before wiring it up, do a “dry fit” of the new controller. Physically place it in the same location the old one sat.
Make sure the orientation makes sense (wires typically should point the same direction for easy connection). Check if the mounting holes or brackets line up.
In many cases, a universal replacement controller will not have the exact same holes for screws.
In that case, you may need to get creative: use zip ties or drill new holes in an existing bracket, or use foam padding to wedge it securely.
The goal is to mount it firmly so it doesn’t rattle or bounce around when you ride. If the original screws line up and fit, great – use them to secure the new controller, tightening snugly but don’t overtighten and strip the threads (small screws usually only need 2-3 Nm torque).
Pay attention to orientation for cooling. The metal box may have fins or a flat heat spreader; ideally mount it so that side gets some airflow or contacts the frame if it was designed to dissipate heat that way.
For example, I mounted one controller with its flat side against the bike’s aluminum frame because the frame acted as a heat sink (there was even a thin thermal pad provided).
In another case, the controller was in a plastic case with no airflow; I added a couple of small holes in the case for ventilation after upgrading to a more powerful controller that ran warmer.
If your new unit came with any thermal paste or pads (sometimes included if it mounts to the frame), apply those as directed.
Secure any straps or brackets to hold the controller tightly. Give it a little shake test – it should not be flopping around.
Also ensure the wiring side is positioned so that the cables will reach their mates. There’s nothing worse than bolting it down and then realizing a wire is an inch too short to connect.
If needed, adjust the position slightly or reroute cables to give more slack.
Double-check the new controller’s specifications one more time before connecting wires, just to be absolutely sure.
Confirm the voltage (printed on it or in its manual) matches your battery, and that it can handle your motor’s current.
If not, do not proceed – you’ll need a different controller or you risk damaging components. Assuming all is well, let’s hook it up!
Related: E-Bike Controller: Boosting Performance & Safety

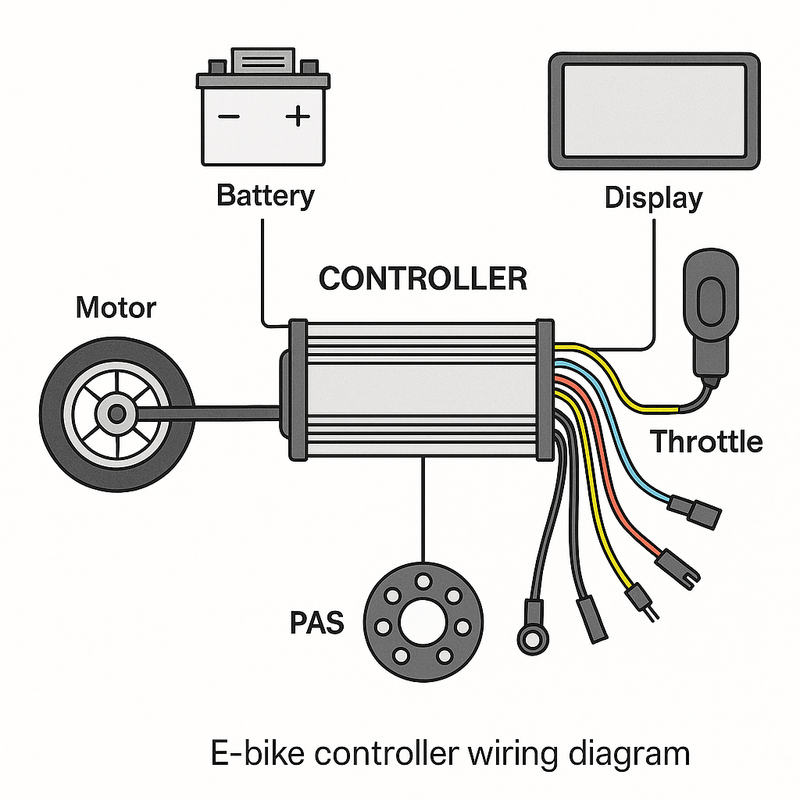

Step 6: Reconnect All the Wires to the New Controller
Now for the heart of the installation: connecting the new controller’s wiring. This is where your labeling and photos pay off. Start plugging things in one by one, ideally in a logical order. Here’s the sequence I like to follow:
Motor Phase Wires
These are the three thick wires usually colored Yellow, Green, Blue. Connect them from the controller to the corresponding wires that go to the motor. Many universal controllers just have these as loose wires with bullet connectors.
Match yellow-to-yellow, green-to-green, blue-to-blue typically. If the connectors are different, you might have to crimp on matching connectors or solder the wires together.
(If you’re unsure, temporarily twist wires together to test motor direction later, then properly join them.) Firmly push in bullet connectors or tighten any screws for these wires.
Hall Sensor / Motor Sensor Plug
If your motor uses a Hall sensor (most do), plug the multi-pin connector from the motor cable into the controller’s hall sensor input.
This is often a 5-pin or 6-pin small plug. It usually only goes in one way. Ensure it’s fully seated.
If the new controller is sensorless or your hall connector is incompatible, you might leave this disconnected – the bike can run without it in many cases (with reduced smoothness), as some controllers auto-detect sensorless mode. But let’s assume you plug it in for proper operation.
Throttle
Connect the throttle cable (usually 3 wires: red, black, green or blue signal) from your handlebar to the controller’s throttle input.
These are often JST-SM smaller connectors. Match the correct one; hopefully you labeled it.
If the connector shape is different, you may again splice wires color to color (double-check the wire functions: usually red=+5V, black=ground, other color=signal).
It’s critical not to mix up throttle vs PAS vs other 3-pin connectors – hence why we label them.
Pedal Assist Sensor (PAS)
Connect the PAS sensor wire. This typically also has 3 wires (power, ground, signal) and comes from a disc near the crank. Plug it into the controller’s PAS input.
Some controllers allow running without a PAS (throttle-only mode), but if you have one, hook it up so your pedal assist works.
If the new controller requires a different type of PAS (some use a 12-magnet sensor vs. older 5-magnet ones), you might need to install a new PAS sensor that came with the controller kit.
Check the documentation; the OZO universal controller, for example, recommends using a specific 12-magnet PAS for best response.
Brake Cut-Offs
These are the wires from your brake levers that tell the controller to cut power when you brake.
They’re usually 2-wire connectors (color like yellow and black, or red and black). Connect each brake lever’s cable to the corresponding 2-pin plug from the controller.
If your bike had them and the new controller supports them, they are important for safety.
If the new controller doesn’t have brake sensor inputs, you’ll lose that feature (meaning the motor won’t automatically stop when braking, so be aware).
Display / Control Panel
If your bike has an LCD display or LED panel, connect it to the new controller’s display connector. This is often a multi-pin green or black connector (like Julet or Higo connector on newer e-bikes).
If you have a mismatched display and controller (e.g., different brands), they might not communicate. As discussed in the compatibility section, you may need to use the new display that comes with the controller.
Plug it in or mount it now if needed. If you’re running without a display, some controllers require a jumper plug or a loop on the display connector to turn on.
Consult your controller manual – for instance, a provided shunt plug can be inserted in place of the display on some generic controllers so the bike can power up without it.
Battery Connection
Finally, connect the battery leads from the controller to the bike’s battery cable. This is the main power connection – usually two thick wires (red positive, black negative).
Many controllers have these as loose ends that you must connect to the battery’s connector. Ideally, your new controller has the same battery plug as the old (for example, XT60 or Anderson).
If so, simply plug it in. If not, you have two options: swap the connector to match (solder or crimp the correct plug onto the controller’s wires), or create an adapter cable.
Ensure polarity is correct: red to red (+ to +) and black to black (– to –). Reversing these will likely fry the controller immediately, so triple-check before connecting the battery.
If you’re soldering these wires, use a solid joint and insulate with heat shrink, because the battery wires carry high current.
Don’t actually plug the battery into the controller yet; just get the wiring ready to connect – we’ll do the actual reconnection during testing.
As you connect each of these, keep things tidy. Route the cables in a neat way, roughly how they were originally, to avoid any wires hanging out where they could snag or get pinched.
Use a few zip ties to bundle wires together and secure them to the frame, similar to how it was before. Leave a little slack at connection points to accommodate movement and vibration, but not so much that wires can rub on tires or dangle loosely.
Good cable management now will prevent future headaches or broken wires.
If you had to splice any wires (like changing connectors), ensure all those joints are insulated individually (no bare wire exposed).
I slide heat-shrink tubing over a soldered joint and shrink it tight to seal the connection. If you don’t have shrink tube, use quality electrical tape, wrapping it well.
Give each spliced wire a gentle tug to make sure the connection is solid – a wire popping out when you hit a bump later would cut off power suddenly, so better to have it fail now during a tug than out on the road.
At this stage, everything should be plugged in to the new controller except the battery. Do a thorough double-check: Compare every connection to your notes, labels, and the photos of the old setup.
It’s easy to miss a small connector (maybe an unlabeled accessory like lights). If something doesn’t have a mate on the new controller, identify what it is – you might have an extra feature the new controller doesn’t support (like a wheel speed sensor or headlight line).
As long as the crucial ones are connected (motor, battery, throttle/PAS, brakes, display), the bike will run. Make sure no connector is only half-way in; they should be firmly seated. Also ensure any polarity markings line up on connectors (some have arrows or markings that need to align).
Everything looks good? Excellent.
Before we button it up, I like to do a quick continuity check on critical connections with my multimeter (optional). For instance, I’ll check that the battery + and – aren’t shorted (meter across the controller’s battery input wires should not beep continuity).
And I verify that +5V from the controller is reaching the throttle connector, etc., just as a sanity check if I did a lot of custom wiring.
If you’re not comfortable with that, it’s okay – it’s an extra step.
Now physically secure any remaining loose bits: reattach any mounting brackets tightly, and tuck the wires in place so you can put back the cover/panel you removed.
Don’t install the cover just yet, though – it’s better to leave things open until we test, in case you need to fix a connection. You can loosely put it in place, but maybe not screw it down fully until after testing.
Step 7: Double-Check and Final Assembly
You’re almost ready to test the new setup. Before connecting the battery and powering on, do one last inspection of the installation. This final review can catch any oversight:
-
Ensure the new controller is mounted securely (tight screws or firmly strapped). It shouldn’t move if you nudge it.
-
Verify every connector pairing is correct – each plug from the bike should go into the proper socket on the controller. If you accidentally swapped two similar connectors (say, throttle and PAS plugs can sometimes be the same 3-pin size), fix that now.
-
Look for any wires that might be pinched by a screw or sharp edge. All wires should bend gently, not sharply kinked or crushed. Add a piece of padding or tape on frame edges if a wire passes over it, to avoid wear.
-
All screws, nuts, and bolts you removed earlier should be back in place (except panels we left off for now). Nothing should be left over unaccounted.
-
The battery connector is ready but not connected yet – good.
-
Your work area is clear of tools or metal bits that could cause a short when you power on.
When I’m confident everything is correct, I move on to testing the system.
Testing and Troubleshooting After Replacement
The moment of truth has arrived: it’s time to power up your bike with the new controller and see if it works. Here’s how I carefully test and troubleshoot the setup:
Initial Power-On
Reconnect the battery to the bike’s wiring and new controller. If your battery is removable, slide or click it back into its mount.
Before turning anything on, pay attention to any unusual signs – if you suddenly see sparks or smell smoke when connecting the battery, disconnect immediately (this shouldn’t happen if polarity was correct and no wires are shorted).
In a normal scenario, nothing dramatic happens just by connecting the battery.
Now, turn on the bike’s power or switch. Watch the controller and display (if you have one) as you do this. A properly functioning setup often shows a power indicator or lights up the display. Check the display for any error codes that appear right away.
Common errors might indicate a missing sensor or a bad connection (for example, an error code for “throttle not detected” or “brake error” if those aren’t hooked up right).
If you see a code, note it down. Many controller manuals have an error code list, or you can look it up if it’s a generic system.
If there’s no display, listen and look for any LED on the controller or a subtle hum from the motor (some controllers make a tiny noise when powered).
No smoke, no sparks, no errors? Good!
Basic Function Tests
With the bike powered, test each function one by one. Do this with the wheels off the ground or the bike in a stand if possible, to avoid the bike shooting off accidentally.
Gently twist the throttle and see if the motor wheel starts to spin. It should start smoothly. If it jerks or sputters, or doesn’t move at all, release the throttle and check connections (phase wires and hall sensor).
If the motor spins in the wrong direction (bike wheel going backwards), you’ll need to swap two of the phase wires (just power off, swap any two of the three motor wire connections, and test again – that usually fixes direction on brushless motors).
Next, test the pedal-assist: spin the pedals forward to engage PAS. The motor should kick in after a second if PAS is working. If not, maybe the PAS sensor isn’t aligned or plugged in correctly – double-check it.
Squeeze each brake lever and ensure the motor cuts out immediately. You can verify this by applying a bit of throttle and then braking; the motor should stop outputting power as soon as brake is pulled (if you wired the brake sensors).
Also, check if any brake or error icon shows on the display when braking (some displays indicate brake signal).
Test any other connected accessories: does your display show speed (if you have a wheel speed sensor or if it calculates from motor)?
Do your lights turn on if they were connected through the controller? It’s easier to catch and fix these issues now than out on the road.
Troubleshooting Errors
If something isn’t working, don’t panic. Stay systematic. Suppose the throttle isn’t responding but PAS works – that could mean the throttle connector is loose or miswired.
Power down and inspect that cable. Or if an error code for “Hall sensor” appears, perhaps the hall sensor plug isn’t fully seated or a pin bent – check that.
A lot of errors trace back to connectors not fully plugged or a mislabeled wire. I find it helpful to eliminate variables: disconnect non-essential components and see if error persists.
For example, if you suspect a bad brake cut-off causing an issue, unplug the brake connectors and test again (most controllers default to thinking brakes are off when they’re unplugged).
If the error goes away, the brake sensor wiring might be shorted or faulty. Use your multimeter to test continuity if needed on suspect wires.
Ensure the throttle isn’t stuck open (some controllers won’t power the motor if they detect a throttle already on at startup – a safety feature).
Trial Run (With Caution)
Once the bike seems to respond correctly on the stand, it’s time for a careful test ride.
Reattach any covers or panels loosely (in case you need to reopen). Ride in a flat, open area without traffic. Start in a low assist level or gently with the throttle. The bike should accelerate smoothly.
Listen for any grinding or clicking – if you hear a loud cogging noise from the motor or it stutters, that’s often a phase wire mix-up or a hall sensor issue.
Stop and recheck the wiring combination if so. If the bike runs but feels weak or cuts out under load, the controller’s current limit might be lower than the old one or a connection is limiting power.
Also, verify the top speed and behavior matches expectation. If you have a display, watch for any error flash when you hit top speed or high load – that could indicate overcurrent protection or similar kicking in. Ride for a few minutes and periodically check that the controller isn’t getting excessively hot.
It’s normal for it to warm up, but it shouldn’t be scorching to touch on a short test. Overheating could mean it’s working too hard (maybe under-specced for your motor) or there’s a configuration issue.
Fine-Tuning
If all goes well, congratulations – you’ve successfully replaced the controller! If there are minor issues, address them.
For instance, if the pedal assist levels feel off, you might need to go into the controller/display settings (if it has any) and adjust wheel size or assist parameters.
Some universal controllers let you program settings like wheel diameter (for accurate speed) and current limits via the display or a programming device.
Check the manual that came with your new controller for any such configurations. Set those as needed (common ones include tire size, battery voltage selection if it’s multi-voltage, low-voltage cutoff for battery, number of PAS magnets, etc.).
During troubleshooting, patience is key. I’ve spent an hour before chasing down an issue that turned out to be a single pin not fully inserted in a connector.
Take breaks if needed and methodically go through each connection.
If an error persists that you just can’t solve, it could be a deeper problem or a defective new controller (rare, but happens).
In that case, don’t hesitate to seek help – contact the controller’s seller or manufacturer for support, or ask on e-bike forums with details of your wiring and errors.
Sometimes another set of eyes or a knowledgeable tech can pinpoint what’s wrong.
Once everything is functioning correctly, finalize the reassembly. Tuck the wires in, and screw back any covers or panels securely. Replace the zip ties you cut with new ones, snugging the wiring harness neatly along the frame.
Your installation should look as tidy as the original, or even cleaner if you routed things better.
Now, enjoy a sense of accomplishment – your e-bike has a new controller and you did it yourself!
Conclusion: Ready to Ride with Confidence
By following this guide, you’ve learned how to perform a successful e-bike controller replacement from start to finish. It’s a rewarding feeling to fix or upgrade your bike on your own, especially as a DIY enthusiast.
Enjoy the smooth power delivery and consistency from your fresh controller – it should feel like a brand new bike if the old controller was failing. And the next time something goes awry in your e-bike’s wiring, you’ll be much more prepared to handle it. Safe travels on your upgraded ride!
Now, gear up and hit the road – happy e-biking! 🚴♂️💨
