48V Battery Replacement BMS Wiring Steps: Expanded Masterclass

Effective 48V battery management system (BMS) wiring hinges on meticulous planning, precise execution, and rigorous verification.

This expanded guide deep-dives into every phase—from component selection and safety standards to firmware updates—so you can wire, test, and maintain a 48V pack with confidence and longevity.

Alongside step‑by‑step instructions, this masterclass includes advanced diagnostics, common pitfalls, and optimization strategies for high‑performance applications.

Understanding 48V BMS Components and Safety Requirements

Key BMS Wiring Components

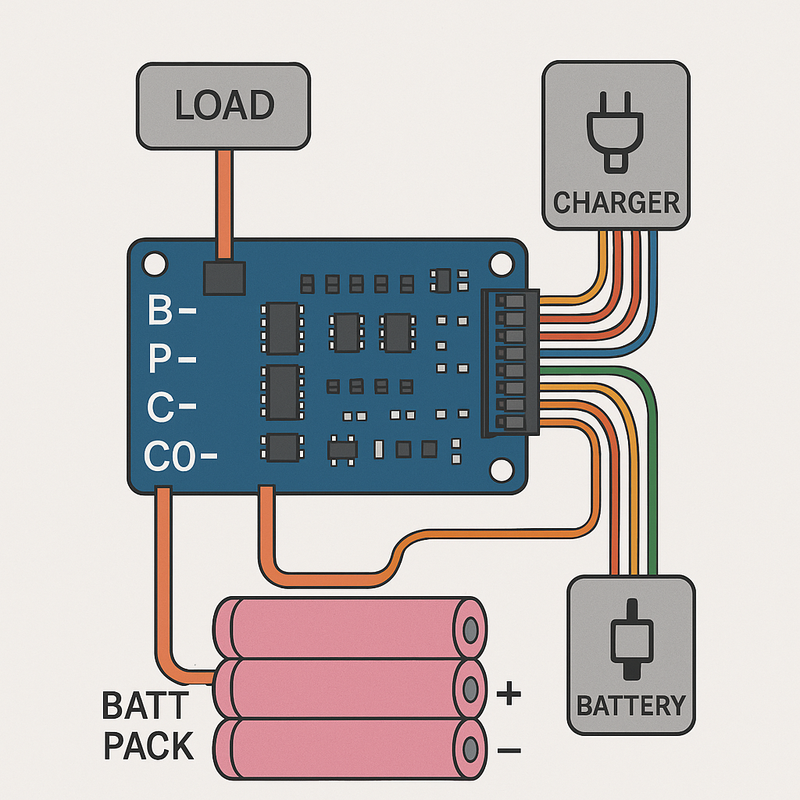

Diagram of a 48 V BMS board showing labeled B‑, P‑, C‑, C0‑ leads, balance harness, and connections to charger, load, and battery pack.

Modern 48V BMS boards contain four core negative leads—B-, P-, C-, and optional C0-—plus a multi-pin balance harness.

Internally, MOSFET arrays handle over-/under-voltage, over-current, short-circuit, and temperature cut‑offs.

Premium boards add CAN/UART telemetry, Bluetooth monitoring, and active-balancing transformers capable of 1–2 A per channel, enabling both passive balancing in simple setups and active balancing for faster cell equalization and extended pack life.

Ensure the balance harness wires are rated for the expected current and shielded if routed near high-power leads.

Mandatory Safety Standards

A compliant installation references three cornerstone documents:

Standard	Scope	Key Requirement
UL 2271	Light-EV battery packs	Cell isolation, fire containment, and dielectric strength testing
ISO 26262	Functional safety	Redundant sensing, fail-safe states, and hazard analysis
IEC 61508	Electronic safety	Proven-in-use diagnostics, safety lifecycle processes

Failing to observe these frameworks exposes the pack to electrical shock, thermal runaway, and legal liability.

In practice, you should obtain certification documentation for your 48V BMS board and verify compliance marks before installation.

Essential Personal Protective Equipment (PPE)

Always wear Class 0 rubber gloves, ANSI Z87.1 safety glasses, and keep an ABC-rated extinguisher within arm’s reach.

An insulated torque driver is essential: stray sparks at 54.6 V can arc through sweat, posing serious shock hazards.

Add vinyl‑coated chainmail gloves when spot‑welding bus bars to protect hands from splatter.

Pre-Installation Preparation and Planning

Required Tools and Materials

Temperature-controlled soldering iron (60–80 W) and flux-core solder for secure busbar joints.
Spot-welder set to 300 ms at appropriate current for 0.15 mm nickel strip, ensuring minimal weld resistance.
True-RMS multimeter (±1 mV accuracy) with sharpened probes for precise voltage readings.
12 AWG silicone cable (≤60 A systems); 8 AWG for 100 A+ packs to reduce voltage drop.
Kapton tape, heat-shrink tubing, and polyimide bus-bars to insulate cell terminals.
High-temp RTV (>150 °C) for thermistor mounting and vibration damping.

Battery Pack Preparation

Group cells by capacity (±30 mAh), open-circuit voltage (±0.05 V), and internal resistance to prevent imbalances.

Pre-charge each cell string to within 0.02 V of pack average to minimize balancing time on first charge.

Use a low-current CC charge (0.05 C) overnight to fully equalize fresh cells.

Step-by-Step BMS Wiring Procedure

Step 1: Identify and Label Wiring Points

For a 13S 48V battery configuration, you'll have 14 wires total: one black wire (B-) and 13 red wires (B1+ through B13+).

Begin by marking each connection point on your battery pack:

B0 (black wire): Connect to the total negative terminal of the battery pack

B1-B12: Connect to the junction points between cell groups

B13 (final red wire): Connect to the total positive terminal

Step 2: Connect Balance Leads

Start with the battery disconnected from all loads and chargers. Connect the balance leads in sequence, beginning with the black B- wire to the battery pack's negative terminal.

Each balance wire must connect to its corresponding cell group junction.

For a 48V system, this creates individual monitoring circuits that allow the BMS to track each cell group's voltage and provide passive balancing.

Step 3: Verify Voltage Readings

Before connecting the balance harness to the BMS, use a digital multimeter to verify correct voltage readings between adjacent wires.

Each connection should show approximately 3.6V to 4.2V for lithium cells, with sequential increases as you move through the pack.

Incorrect voltage readings indicate wiring errors that must be corrected before proceeding. Cross-connected wires can cause excessive current flow and permanent BMS damage.

Step 4: Connect Main Power Wires

The B- wire connects directly to the battery pack's negative terminal using heavy-gauge wire rated for your system's maximum current.

This connection should be as short as possible to minimize resistance and heat generation.

P- and C- connections depend on your BMS configuration.

Common port BMS units use a single P- connection for both charging and discharging, while separate port systems require individual C- (charge) and P- (discharge) connections.

Advanced Wiring Configurations

Common-Port vs Separate-Port Systems

Feature	Common-Port	Separate-Port
Negative Leads	2 (B-, P-)	3 (B-, P-, C-)
Wiring Simplicity	High	Moderate
Peak Charge Current	Up to BMS rating	Often lower due to distinct FET bank
Concurrent Charge & Discharge	Limited	Fully independent

Integrating Active Balancers

Active balancers shuttle charge (0.5–10 A) between high and low cell groups via inductive flyback circuits, wasting <5% energy.

Add the balancer in parallel with the BMS harness; follow the “overlap two leads” method to avoid ground loops when stacking multiple PCBs.

Temperature Sensor Installation

Mount at least one NTC directly on the hottest series group: half-height along the can wall or wedged in the cell valley with RTV for sub-1 s thermal response.

A second probe on the MOSFET heat-sink catches board-side heating.

Voltage Testing and System Verification

Initial Pack Checks

Total open-circuit voltage should read 48–54.6 V for Li-ion or 42–53.5 V for LiFePO₄. Any deviation >1 V signals mismatched strings.

BMS Functional Tests

Power on the BMS via the balance harness only (do not connect main leads).

In vendor software, tap “Read Registers” to confirm cell voltages, pack current, MOSFET status, and thermistor temperatures.

Trigger over-current by applying a 1.2× rated load; the BMS should cut within 50 ms.

Simulate over-voltage by individually charging one cell string to 4.3 V; observe threshold response and safe-latch behavior.

Load Testing and Thermal Validation

Thermal‑camera‑style view highlighting MOSFETs and sense resistor hotspots on a BMS board under high‑current load.

Run stepped constant-current discharges: 0.2 C, 0.5 C, then 1 C. Record per-cell voltage sag; any cell dropping >0.3 V below average indicates a weak cell or poor weld.

Use an infrared thermal camera to inspect MOSFETs and sense resistors under load; hotspots above 70 °C require heatsinking or reflow.

Incorporating Safety Standards and Compliance

Fuse and Reverse-Polarity Protection

Install inline MIDI fuses sized at 110 % of peak current on the positive rail to prevent short circuits.

Include a DC 10 mΩ shunt for current logging, placed close to the P+ terminal. Use keyed XT90-S connectors for reverse-polarity protection, ensuring that mis-plugging is mechanically impossible.

Wiring Best Practices

Illustration of two separate cable trays labeled ‘POWER CABLES’ and ‘SIGNAL CABLES,’ each containing thick power lines and thinner signal lines routed distinctly.

Separate power and signal cables by routing them in distinct looms or cable trays to reduce EMI.

Use plenum-rated, flame-retardant insulation for batteries mounted inside vehicle frames.

Label every wire at both ends with heat-shrink markers tied to the schematic.

Fail-Safe Design

Set over‑voltage and under‑voltage thresholds at least 50 mV inside the absolute cell limits and store them redundantly in NVRAM.

Confirm the board latches off MOSFETs, not auto-resets, above 80 °C to meet ISO 26262 ASIL-B requirements.

Maintenance and Monitoring Protocols

Routine Inspection Schedule

Interval	Task
Monthly	Verify charger voltage, scan for fault codes, check CAN/BLE link status.
Quarterly	Inspect all connectors for corrosion, clean contact surfaces, re-torque terminals to spec.
Yearly	Run a full 0–100 % charge/discharge calibration, compare logged capacity to rated Ah.

Data Logging and Telemetry

Adopt CAN 2.0B at 500 kbps or BLE 5.0 telemetry for real-time SOC, SOH, and temperature mapping.

Store logs on an SD card or cloud dashboard for trend analysis and predictive maintenance. Integrate data into a SCADA system for multi-pack installations.

Advanced Troubleshooting and Solutions

Symptom	Probable Cause	Solution
Zero voltage on cell 5	Crossed B4/B5 balance leads	Re-order harness, meter each lead, perform BMS hard reset.
Charger clicks off at 80 %	Top-balance cut-off from high delta-V	Manual top-balance or upgrade to active balancer.
Instant fuse blows on connect	Reverse polarity or shorted C-/P- leads	Verify continuity, use keyed connectors, retest with insulation tester.
Random MOSFET over‑temp under load	Thermistor loose or mis‑mounted	Re-secure sensor with high‑temp RTV, confirm reading with secondary probe.
Firmware upload fails	Incorrect board variant selected	Check silkscreen part number, download correct firmware revision.

Common Pitfalls and Pro Tips

Mis‑ordered balance leads can destroy the BMS instantly—always meter each pin before plugging in.
Over‑sized connectors reduce contact quality; match connector amp ratings closely.
Active balancing adds cost but can extend cycle life by up to 15 % in high‑cycling scenarios.
Thermal management: add small MOSFET heatsinks and thermal pads for packs subjected to sustained high current.

Conclusion

A meticulously wired 48V BMS transforms a stack of lithium cells into a dependable, high-performance energy source.

By adhering to global safety standards, using quality materials, validating every connection, and maintaining robust firmware and monitoring practices, you secure both rider safety and battery longevity.

Treat each installation as a professional engineering project—the integrity of your e-bike, powerwall, or UPS depends on it.

FAQs

Can I mix LiFePO₄ and Li-ion cells in the same pack?

No. Voltage curves, charge thresholds, and balancing currents differ, causing severe imbalance risk.
What balancing current is typical for passive BMS boards?

Passive boards usually shunt 50–200 mA per channel (≈1–3 mA/Ah in large packs).
How do I reset a tripped BMS?

Disconnect P-/C- leads, wait 30 s, reseat balance harness; some models feature a pinhole reset button.
Is active balancing worth the investment?

For large (>500 Wh) packs or rapid‑charge use, active balancing can boost usable capacity by 10–15 % and shorten top‑balance time dramatically.
Where should I mount temperature sensors?

Place halfway up the cell wall or between cells near the positive tab for fastest response.
Do firmware updates void my warranty?

Official vendor updates are covered; third‑party firmware may void support—always back up originals.
Why does my charger stop at 54 V instead of 54.6 V?

Many BMSs enable balancing near 4.18 V/cell, causing charger cycling to maintain cell health.
Can I charge and discharge simultaneously on a common-port BMS?

Generally no—shared FETs can overheat; separate‑port designs handle concurrent flows better.
How often should I recalibrate SOC readings?

Perform a full cycle once per year or when SOC error exceeds ±5 %.

What happens if the balance leads are miswired?Misordering can short 15+ V into sense circuits and instantly destroy the BMS—double‑check every pin.
