How to Replace the BMS on a 36V Li-ion E-Bike Battery

Replacing the Battery Management System (BMS) on a 36V lithium-ion battery pack (like those in electric bikes) requires careful attention to wiring and safety.

This guide provides a step-by-step walkthrough for wiring steps to replace the BMS on a 36V Li-ion battery pack, ensuring you can restore your battery’s performance and safety.

We’ll cover why you might need a new BMS, the tools and precautions needed, and detailed wiring instructions so you can replace the BMS confidently and correctly.

Quick Summary: Wiring Steps to Replace a BMS

Replacing a BMS on a 36V battery involves several key steps. Here’s a brief overview of the process from start to finish:

Safety First: Disconnect the battery from any device and work in a safe area. Wear insulated gloves and safety glasses. Ideally, discharge the battery to a moderate level (not fully empty, but not full) to reduce stored energy.
Access the Battery Pack: Open the battery casing to expose the cells and existing BMS. Carefully note or label all wires (photograph the setup for reference).
Remove the Old BMS: Unplug or detach the balance wire connector from the old BMS first. Then de-solder the main connection wires (usually the B- wire from battery negative and the P- wire to the discharge port) from the old BMS board. This frees the old BMS for removal.
Prepare the New BMS: Ensure the replacement is a 36V (10S) BMS compatible with your pack (10 cells in series). It should support the same cell configuration and a suitable current rating for your e-bike’s power. Identify the BMS wiring leads: main B-, P-, (and C- if separate charging port), as well as the multi-pin balance connector with wires B0, B1, B2, ... B10 for a 10S pack.
Wire the Main Terminals: Solder the B- (battery negative) lead of the new BMS to the battery pack’s main negative terminal first. The pack’s main positive lead (B+)** is usually not switched by the BMS; it goes directly to the battery’s positive output connector. If it was disconnected, reconnect the pack positive to the output positive (or B+ pad) last.
Connect Balance Leads: Attach the BMS balance wires to each cell group in sequence. Start with the B0 (black) wire to the total battery negative, then B1 to the connection between cell 1 and cell 2, B2 to the connection between cell 2 and cell 3, and so on, up to B10 at the pack’s positive end. Connect these small balance wires one by one in the correct order to avoid any wiring mix-up or voltage spike. Many BMS come with an 11-pin connector harness for a 10S pack – do not plug it into the BMS until all wires are correctly soldered to the cells and double-checked.
Connect Charging/Discharging Leads: Solder the P- wire of the new BMS to the negative lead of the battery’s discharge connector (the lead that goes to your e-bike controller’s negative and usually also to the charger’s negative). In many e-bike BMS designs, P- serves as both the discharge and charge negative. If your BMS has a separate C- (charge negative) terminal, connect that to the charger’s negative lead. The positive leads for both discharge and charge typically share the battery’s main positive connection, so those should already be tied to the pack’s + terminal.
Double-Check Connections: Verify every connection. Ensure each balance wire is on the correct cell junction in ascending order and that all solder points are secure. Use a multimeter to measure the voltage between adjacent balance pins (B0-B1, B1-B2, etc.) – each should read the voltage of one cell (around 3.5-4.2V if cells are charged). Also check the total pack voltage between B- and the highest B+ pin to confirm it matches the sum of all cells. Any anomaly might indicate a miswiring that needs correction before proceeding.
Initial Power-On and Test: Once wiring looks correct, plug the balance connector into the new BMS (if it’s a detachable harness). The BMS should initialize. Measure the overall battery output voltage at the pack’s discharge connector (between the main + and the P- you wired). It should read the full ~36-42V of the pack if the BMS is allowing output. If you get 0V or very low voltage at the output, the BMS might be in protection mode or something is wired incorrectly – recheck wiring and cell voltages.
Secure and Reassemble: If the output voltage is correct, you can proceed to wrap or mount the new BMS in the battery pack. Insulate any exposed conductors (use kapton tape or insulation sheets under the BMS, and shrink wrap or electrical tape over connections) to prevent shorts. Reassemble the battery enclosure carefully, ensuring no wires are pinched.
Charging and Balancing: Perform a slow charge of the battery via the normal charger. Monitor that the BMS allows charging and that no cell group exceeds its maximum (around 4.2V per cell). The BMS should balance cells at full charge. After charging, also test the battery on the e-bike to ensure it delivers power and that the BMS doesn’t cut out unexpectedly.

This summary covers the essential wiring steps. Next, we’ll dive deeper into each aspect – from understanding the BMS’s role to detailed precautions and step-by-step guidance – so you can confidently replace your 36V pack’s BMS.

Tools and Safety Precautions for BMS Replacement

Working on a high-capacity lithium-ion battery requires serious respect for safety. A 36V pack can deliver a dangerous current if shorted, and Lithium cells store a lot of energy. Here’s how to prepare:

Safety Gear: Always wear protective gloves (electrical insulating gloves if possible, or at least nitrile gloves for some insulation) and safety goggles. Remove any metal jewelry (rings, watches) that could accidentally short terminals. Have a fire extinguisher (Class D or ABC) nearby, just in case.
Work Area: Choose a clean, uncluttered workspace free of flammable materials. Work on a non-conductive surface (a wooden bench or rubber mat). Good ventilation is recommended in case a cell vents.
Battery State of Charge: If possible, discharge the battery to around 30-50% before working on it. A pack at half charge has less stored energy than a full one, making it a bit safer. Do not fully discharge it to 0% (lithium cells at 0% can drop into a damaging voltage range). Many BMS won’t let a fully drained battery discharge anyway. If the battery is “off” due to BMS, you might not have a choice in state of charge – proceed carefully knowing the cells could still be near full.
Insulated Tools: Use tools with insulated handles. When soldering or wrenching battery connections, cover any exposed sections of the battery or adjacent terminals with insulation (e.g., a sheet of plastic or rubber) to avoid accidental contact. For instance, when unsoldering the negative lead, ensure the positive side is safely covered so your tool can’t short between them.
No Shortcuts on Soldering: Use a low-power soldering iron for the delicate BMS PCB connections, and a higher-power iron or soldering gun for thick battery wires if needed. Have heat shrink tubing and electrical tape to insulate solder joints. Avoid creating solder bridges or splatter on the BMS board.
Handle Cells Gently: The battery cells will be exposed once you open the pack. Do not crush or puncture them. They might be linked by nickel strips – be careful not to pry or bend these unnecessarily. If you need to slide wires around or under them, do so slowly and don’t yank.
Avoid Static: While less critical than with electronics like CPUs, it’s still good practice to ground yourself (or at least touch a metal object to discharge static) before handling the BMS circuit board, especially if it has any CMOS components.
Follow BMS Instructions if Provided: Some BMS kits come with wiring diagrams or specific order recommendations. Always double-check any included manual or diagram for your specific BMS model. If the manufacturer says to connect in a certain sequence or has color-coded wires, follow that closely.
Patience and Focus: Perhaps the most important tool is a clear, focused mind. Double-check polarity and wire order before soldering each connection. A single mistake in wiring a balance lead (e.g., swapping two wires) can destroy the new BMS or even cause a fire when the battery is re-activated. Take your time and don’t rush any step.

By preparing properly and respecting these precautions, you greatly reduce the risks involved. Now, let’s move on to understanding the wiring layout of a typical 36V pack and BMS, which will make the replacement steps much clearer.

Understanding a 36V Battery Pack’s Wiring and BMS Connections

Diagram of 36V lithium-ion battery pack showing BMS wiring with 10 cell groups and labeled B-, P-, and balance wires.

Before wiring in the new BMS, it’s crucial to understand the existing wiring of your 36V Li-ion battery pack.

A 36V pack usually consists of 10 series-connected cells (10S), often arranged as multiple cells in parallel per series group (e.g., 10s3p means 10 series groups of 3 cells each).

Each series connection point has a small wire going to the BMS for monitoring. Let’s break down the typical BMS connections:

B- (Battery Negative)

This is the main negative terminal of the battery pack (0 volts reference). The BMS’s B- wire or pad connects here, effectively the negative end of the entire series string.

All negative currents from charging or discharging flow through the BMS at this point.

B+ (Battery Positive)

This is the main positive terminal of the pack (around 36-42 volts relative to B- when charged).

In many e-bike batteries, B+ doesn’t go through the BMS; instead, the battery’s positive lead is directly connected to the output for the bike and charger’s positive side.

The BMS monitors the positive end voltage via the highest balance wire (B10 on a 10S), but there typically isn’t a switching element on B+. (Some BMS boards do have a B+ pad simply as a connection point for convenience.)

P- (Pack Negative / Power Negative)

This is the negative output from the BMS to your device (bike motor controller) and charger.

P- is controlled by the BMS’s MOSFETs. Under normal conditions it’s connected internally to B-; if the BMS triggers a protection (overdischarge, overcurrent, etc.), it will open the circuit between B- and P-, cutting off current.

The P- lead goes to the negative pin of your battery’s discharge connector (and often the charger port negative as well, if they share a connector or common ground).

P+ (Pack Positive)

This is simply the battery positive output, usually a direct connection from the cell string’s positive end.

It goes to the positive pin of the discharge connector (and typically to the charger’s positive as well). It may connect to the BMS board at a common point or not at all.

In short, P+ is the same node as B+ (battery positive) on most e-bike packs.

C- (Charge Negative, optional)

Some BMS have a separate charge port.

In those cases, there will be a C- terminal on the BMS for the charger’s negative lead, while P- only goes to the discharge (motor) negative.

The BMS still protects both paths, but it can have separate FETs for charging.

If your new BMS has a C- wire (often yellow), connect it to the charger port’s negative, and connect P- only to the discharge connector’s negative.

If there is no C- (common setup), the charger and controller both share the P- connection on the BMS.

Balance Leads (B0, B1, B2, ... B10)

These thin wires monitor each cell group’s voltage.

Typically, a 36V (10S) pack has an 11-pin connector with one black wire (B0) and ten colored wires (B1-B10, often red for the last one).

B0 is the ground reference and connects to the main negative of the first cell (same point as B-).

B1 connects to the positive terminal of the first cell group (which is also the junction between cell group 1 and 2).

B2 connects to the junction between cell 2 and 3, and so forth, up to B10, which connects to the positive terminal of the top cell group (and thus the main pack positive).

Each consecutive pair of these wires measures one cell’s voltage. The BMS uses these wires to balance and to shut off the pack if any cell is out of range.

To visualize: if you number the cell groups from 1 (negative end) to 10 (positive end), B0 attaches at the very negative end of group 1, B1 at the junction between group1 and group2, B2 at junction between group2 and group3, ... B9 at junction between group9 and group10, and B10 at the positive end of group10.

Double-check the wire order of your new BMS’s balance connector before installing. They are usually in order, but verifying the color coding or labels is wise.

Manufacturers often mark the B0 wire black and the highest Bn wire red, with others rainbow-colored sequentially.

If in doubt, use a multimeter on the pack and identify each wire’s voltage step from the previous one to confirm the sequence.

Diagram Tip: It may help to draw a simple sketch of the battery and label each connection point with the corresponding BMS wire (B1, B2, etc.).

This way, as you wire up the new BMS, you can refer to your diagram to ensure each wire goes to the correct spot.

Many generic BMS wiring diagrams (like those from Daly or Bestech) show this sequence clearly, indicating the negative goes to B- and each cell connection to B1...B10 in order.
Note on Connectors: If the old BMS uses a similar multi-pin connector and you bought an identical replacement BMS, you might simply plug the existing balance lead connector into the new BMS.

However, only do this if you are absolutely certain the pin ordering and wiring is identical.

If the connectors differ or you’re not 100% sure, it’s safer to re-wire the new connector that comes with the BMS by soldering its leads to the cells in the correct order.

Many experienced tinkerers will remove each wire one-by-one from the old BMS and immediately attach it to the new BMS or new harness in the same position to avoid confusion.

This careful one-at-a-time method can prevent mistakes, especially with 10+ tiny wires.

Now that we have a clear understanding of each connection, let’s proceed to the actual replacement process step by step.

Related: How Fast Can a 1000W Ebike Go

Step-by-Step Guide: How to Replace a 36V BMS (Wiring Procedure)

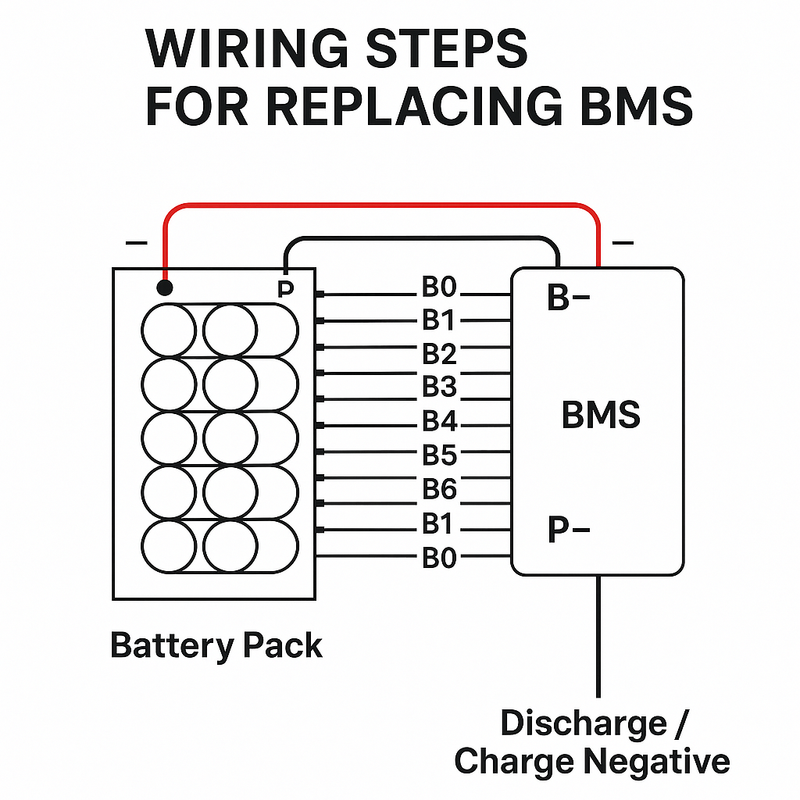

Step-by-step wiring diagram for replacing a 36V BMS showing labeled connections for B0 through B6 and terminals B-, P-.

In this section, we’ll break down the BMS replacement into detailed steps. Follow each step closely for a smooth and safe installation.

Step 1: Obtain the Right Replacement BMS

Before tearing apart anything, make sure you have a proper replacement BMS in hand. Key factors to match:

Series count (S): For a 36V lithium-ion pack, you need a 10S BMS (10 series connections). Using a BMS with the wrong series count (e.g., 13S or 7S) will not work and could be dangerous.

The BMS logic is designed for a specific number of cells.
Continuous current rating: Check the current your e-bike draws (and charges). Get a BMS that meets or exceeds this current.

For example, if your e-bike controller draws 20A continuous and 35A peak, a BMS rated for ~30A continuous and 60A peak is a safe bet.

It’s generally wise to choose a higher rating than you think you need, as some BMS listings exaggerate capabilities. If the old BMS had a printed rating (e.g., 15A or 20A), use that as a baseline minimum.
Size and Connector: Make sure the new BMS can physically fit in your battery’s casing. Also, note the connector type for the balance leads.

If it’s different from the old one, you’ll be splicing in the new connector (which is fine, just more work).
Features: Optional – some BMS include features like Bluetooth monitoring, separate charge/discharge ports, temperature sensors, etc. Ideally, match what your old BMS had.

If your pack had a temperature sensor, ensure your new BMS supports one or reuse the old sensor with the new BMS if possible.

Having the correct BMS ready will save you from being stuck mid-job. It’s frustrating (and unsafe) to leave a battery open waiting for parts, so double-check these specs before proceeding.

Step 2: Open the Battery Pack

Next, you need to access the BMS and cell connections. This can be one of the trickier parts depending on how the battery is built:

Remove the Case

E-bike battery packs often come in plastic or metal housings, sometimes with screws, sometimes glued.

Remove screws or clips carefully. If it’s a shrink-wrapped pack (common in DIY or some scooter batteries), you may need to carefully slit the outer shrink wrap or tape.

Avoid stabbing deep in case you hit a cell. Only cut shallow into any wrap or adhesive.

Gently Unpack

Inside, you’ll usually find cells arranged in rows, often wrapped or held by brackets, with a BMS circuit board attached on top or side.

The BMS might be secured with silicone, hot glue, or tape. Free it gently if needed – a plastic pry tool can help separate a glued BMS board without causing a short.

Document the Wiring

Before disconnecting anything, take clear photos from multiple angles. Note where the main wires (thick red and black) go, and how the thin balance wires are routed and connected.

Look at any labels on the old BMS. Many BMS boards have markings like B-, P-, C-, B1, B2, etc., next to the solder pads – take a picture of those labels if visible.

This documentation is a lifesaver if you need to reference the original setup later.

Identify Any Extras

See if there are any temperature sensors (small wires leading to a sensor touching cells, usually yellow or white wires) or auxiliary wires (like for an LED charge indicator or power switch) connected to the BMS.

If yes, make note – you’ll want to reconnect those to the new BMS if it supports them, or transfer the sensor.

Temperature sensors are usually 10k NTC thermistors attached to the BMS; you can often reuse the same sensor by soldering it into the new BMS’s thermistor pads if needed.

With the battery internals exposed and documented, you’re ready for the removal and re-wiring process.

Step 3: Disconnect the Old BMS

Now, carefully remove the old BMS from the pack:

Disconnect Balance Connector

If your BMS’s balance wires are on a plug-in connector (common on many BMS), unplug that connector first. This isolates the delicate balance leads from the BMS electronics.

Be gentle and try to pull it straight out without wiggling too much (you don’t want to yank any wires out of the connector or pack).

In some designs, the balance wires might be soldered directly to the BMS instead of a plug – in that case, you’ll desolder them later.
Remove Main Wires (B- and P-)

The BMS will have one or two thick wires soldered to it:

B- wire (usually black) coming from the battery’s main negative end, soldered to the BMS B- pad.

P- wire (usually black or blue) going out to the discharge connector negative (and charger negative if common). It’s soldered to the BMS P- (or sometimes marked P-/C- if combined).

Sometimes a separate C- wire (often thinner black or yellow) for charger negative if the design is split-port.

And possibly a thick red wire for B+ if the BMS board uses it as a junction (or if there was a fuse on B+ side).

Use your soldering iron to desolder the B- wire first from the old BMS board.

This wire likely goes directly to the battery’s negative terminal, so once removed, the BMS no longer has a complete circuit with the pack.

Immediately insulate the end of that B- wire (wrap in tape) so it can’t accidentally touch anything until we reconnect it to the new BMS.

Next, desolder the P- wire from the old BMS. This may be connected to a fuse or directly to the negative output lead.

Once free, keep it clear of the battery negative or positive. If there was a separate C- wire, desolder that as well.

Lastly, if the BMS had a B+ connection (some boards have the main positive lead soldered through them or a thin sense wire to B+), remove that.

In many cases, the thick positive lead is not actually soldered to the BMS but attached to the battery output/fuse; if it is soldered to the BMS, remove it after the negatives are done.
Detach the BMS Board

With all wires off, the old BMS can be taken out. If it was glued or taped, carefully peel it off.

Take care not to strain the balance lead bundle as you maneuver the board out (especially if you haven’t desoldered the thin wires yet). If the thin balance wires were directly soldered, you have two choices:

Desolder each small wire one by one from the old board (potentially time-consuming and risks heat damage to wires).

Or physically cut the wires near the old board to free it, leaving the wires attached to the cells, which you will then splice or solder to the new BMS connector later.

Cutting might be easier in messy installs – just be absolutely sure to cut one wire at a time and cover its end before cutting the next, to avoid shorting two different potential wires with your tool.

The old BMS is now out of the picture. Set it aside.

You should have all the necessary wires free: the main negative from the battery (B-), the main negative to output (P-), possibly a C- (if used), the cluster of balance wires from B0...B10 (either still in a connector or loose), and any other auxiliaries (like thermistor wires or LED wires if applicable).

Step 4: Wire in the New BMS

This is the most crucial part – connecting the new BMS correctly to the battery. We will connect the wires in an order that minimizes risk:

4.1 – Start with B- (Battery Negative)

Begin by soldering the battery’s main negative lead to the new BMS at the B- pad.

This is usually a thick pad labeled B- on the PCB. A strong connection here is critical, as all current in/out of the pack flows through it. Use adequate solder and ensure it’s solid.

By connecting B- first, we establish the reference ground for the BMS circuitry. (Important: if your BMS has a detachable balance cable harness, do not plug it into the BMS yet – keep the BMS unpowered until all connections are made correctly.)

With B- connected, the BMS now shares a common ground with the battery (though it may still be off until the balance leads provide power to its IC).

4.2 – Connect Balance Leads in Sequence

Now comes the delicate task of connecting each balance wire (B0/B1/B2/etc.) to the pack.

If your new BMS has the same connector and you left the old wires in the plug, you can skip this step by simply plugging the connector in after B- and B+ are in place. However, assuming we need to attach wires:

Proceed one wire at a time, in order:

B0 (Black wire): This should be already effectively connected because B0 is the same point as the pack negative which we just soldered to B-.

If the B0 wire on the harness is separate from the B- connection, attach it to the battery negative as well (often it’s already soldered to the same point as the B- wire on the cells).

Some harnesses have the black B0 wire going to the same ring terminal or solder pad as the B- cable. The idea is B0 = battery negative = reference for all other cells.
B1: Solder the B1 wire to the positive terminal of the first cell group.

This point is the connection between cell group 1 and 2 in series. It might be where a nickel strip from cell group1 connects to group2.

On your battery, this is likely the first small wire you see coming off the series chain after the negative end.

Connect the B1 wire from the new BMS harness to this point (or verify the existing wire from that point goes into pin B1 of your connector).

Ensure insulation: after soldering, any exposed joint should be insulated with tape or silicone.
B2, B3, ... B9: Continue this process for each successive balance lead.

Go in order: B2 to the next series connection, B3 to the one after, and so on.

Each wire connects to the positive end of each cell group or the series junction between groups.

Keep checking that the sequence from the pack matches the sequence of your harness.

Usually, the physical layout of wires in the battery corresponds to the cell order, but it might not be perfectly in line – go by the cell group order, not just wire color, unless you are confident in the color coding.
B10 (last balance wire): This one goes to the main positive terminal of the whole pack (the positive end of cell group 10).

In many batteries, there is already a thick red wire at this point for the main output. You can attach the B10 sense wire alongside that connection (solder it where the thick positive lead is soldered).

B10 is critical because it lets the BMS monitor the top cell group and total voltage.

While connecting each balance lead, a good practice is to measure the voltage between B0 (pack negative) and each new wire as you connect it.

For instance, after connecting B1, measure between B- and B1 to confirm it reads the voltage of cell group1 (e.g., 3.7 V).

Then connect B2 and measure B- to B2 ( sum of cell1+2 voltages, maybe ~7.4 V), and also B1 to B2 (should be one cell’s voltage).

This step-by-step validation can catch a wiring mistake early – if you see an unexpected jump or no voltage, you may have soldered to the wrong point.

The Daly tutorial emphasizes checking each adjacent wire pair voltage after soldering. It’s tedious but very worthwhile for safety.

By the end of this, all balance leads B1 through B10 (and B0 if separate) are attached.

The new BMS harness is now effectively wired into the pack, though you might not have plugged it into the BMS board yet if it’s a plug type – leave it unplugged until we finish the main connections.

4.3 – Connect P- (Discharge Negative) and C-

Now solder the P- wire (which goes to the battery’s discharge connector negative) to the new BMS’s P- pad.

If your BMS only has one combined P- for both charge and discharge, that’s the only remaining heavy negative to connect. Make sure this connection is solid; it will carry the full motor current.

If your pack had a separate charge port and the new BMS has a C- pad as well, connect the charger’s negative lead to C-.

On many e-bike batteries, the charge port negative and discharge negative were tied together on the old BMS (common port) – in that case you’ll simply have a single P- to connect.

If you do connect a separate C-, ensure the charger’s positive is, of course, still tied to the pack positive (usually it is).

4.4 – Attach Pack Positive (if needed)

In most cases the thick positive lead doesn’t go through the BMS, but ensure that the battery’s main positive lead is connected to the output connector’s positive.

If you had disconnected it or it was routed via the BMS board, reattach it securely (often it’s on a fuse or switch).

If the BMS board has a B+ terminal and requires the pack positive connection for some reason (some smart BMS need it for voltage reading), then follow the BMS manual and connect it.

Otherwise, the pack positive should already be continuous from cells to output. This step is essentially making sure the P+ (positive) side of the circuit is intact and was not left open during the swap.

At this point, all primary connections should be made: B- to pack negative, P- (and C-) to outputs, and all balance wires to their respective points.

The new BMS is wired up but likely still not actively managing the pack until the balance connector is plugged in (if it was detached).

4.5 – Plug in the Balance Connector

If your BMS uses a plug-in harness, now is the time to carefully plug it into the BMS board.

Double-check that the connector orientation is correct (it usually only fits one way, but make sure pins align). When you plug it in, the BMS circuitry will power up from the cells.

It’s normal if you see a tiny spark at the moment of connection on some designs (inrush current charging the BMS capacitors), but ideally it shouldn’t if done slowly.

If the BMS has LEDs or a Bluetooth module, you might see signs of life now.

Important: If anything was wired incorrectly in the balance leads (like one lead out of order), this is the moment things could go wrong (potentially damaging the BMS).

If you followed the sequence and checked voltages, you should be fine.

But if upon plugging in, something smells, gets hot, or the connector pops, immediately unplug and re-check every wire.

A properly connected BMS will usually just sit idle with no drama.

Step 5: Verify the New BMS Installation

With everything connected, take time to verify the installation before sealing the pack:

Measure Overall Voltage

Using a multimeter, measure the voltage between the pack’s main output terminals (the same ones that connect to your bike).

This is between the pack’s P+ (battery positive) and P- (the BMS-controlled negative you just wired).

You should get a reading close to the battery’s normal voltage (e.g., ~36-42V for a 36V pack). If you read essentially 0V (or a very low voltage, like a single cell’s voltage), the BMS may be in protection or a connection is wrong.

Many BMS ship in a protective state and might require connecting the charger briefly to “turn on.” Try briefly connecting the charger to wake up the BMS if this is the case.

Otherwise, a 0V reading could mean the BMS isn’t seeing the cells correctly (balance lead issue) or is damaged. Re-check the balance connector seating and all wires.

Check Cell Voltages via BMS

If you have access to the balance connector pins (carefully, with a multimeter), you can measure each cell pair via the BMS connector: B0-B1, B1-B2, ..., B9-B10.

Each should give a sensible cell voltage (~3-4V). This confirms the BMS is reading all cells.

If one of those measurements is 0 or very high (like 8V), you likely have two wires swapped or a bad connection on one of the sense wires.

Fix any such issue before proceeding.

No Overheating

Feel (carefully) if the BMS board is getting hot anywhere (particularly the large MOSFETs or resistors). During standby, it should not heat significantly.

If it’s getting hot with no load/charge, something might be wrong (short or the BMS is actively balancing heavily – slight warmth near balance resistors is okay if cells were imbalanced and it’s bleeding a high cell down).

Test the Protection Features (Optional)

At this stage, you could test if the BMS will cut off properly.

For example, you might simulate an over-discharge by connecting a resistive load and seeing if it cuts off at low voltage (not easy to do quickly), or over-charge by seeing if it stops at 42V on charger.

These are generally not necessary to test explicitly if you trust the BMS, but be mindful during the first real use/charge that it behaves correctly.

If all looks good, congratulations – the new BMS is operational and the pack voltage is restored! The battery should essentially be “alive” again and functioning through the BMS.

The final steps are to finalize the assembly.

Step 6: Reassemble and Finalize the Pack

Now you’ll put everything back together neatly:

Secure the BMS

Mount the new BMS board in the battery pack so it won’t rattle or short.

Use the same method as the original – possibly a bit of foam double-sided tape, a zip tie, or a dab of silicone glue on safe spots (avoid covering any heat-shedding components on the board with glue).

Ensure no solder joints or bare wires on the BMS underside can touch the cells or nickel strips below – a layer of fish paper or thin insulation sheet between the BMS and cells is highly recommended.

Never leave the PCB resting directly on the battery cells or nickel strips without insulation.

Dress the Wires

Organize the balance wires and main leads as they were (or better than before). Bundle excess wire length, and keep the balance leads away from any sharp edges.

If the manufacturer had them glued in channels or tucked under kapton tape, redo that to keep them secure.

Any wire that could potentially rub or get pinched by the case should be padded or repositioned.

Replace Insulation

If you had to cut any insulating paper or padding to get the old BMS out, replace it around the new BMS.

Use electrical tape or kapton to cover any splices you made on balance wires. The goal is that nothing conductive is exposed that could cause a short if it shifted.

Close the Case

Gently put the battery pack back into its housing. Be extremely careful not to pinch any wires, especially the new balance lead connector or any wires near screw posts.

Reinstall any screws or end caps. If the pack was shrink-wrapped, you might need to apply new shrink wrap or at least a strong tape wrap around it to hold everything together snugly.

Final Charge and Balance

Give the battery a full charge with the proper charger. During this first charge with the new BMS, observe it for any unusual behavior.

The BMS should allow the pack to charge up to about 42.0V (for a 36V nominal pack). If it stops charging early, check cell voltages – maybe one hit the balance threshold and the BMS is balancing.

After a full charge, all cells should ideally be near 4.2V. The BMS’s balancing will bleed down any cell that hits ~4.2V until others catch up.

It’s normal for the charger to go green (off) and then maybe come on again as balancing occurs.

This first charge is a good test that your wiring is correct and the BMS functions (cells balance properly, and no group goes overvoltage).

Test on Bike

Finally, connect the battery to your e-bike and take a test run (or at least run the motor on a stand). Ensure the BMS can deliver the required current.

If the bike cuts out under load, the BMS might be tripping (possible if the new BMS’s current limit is lower than needed or if something is wrong).

Assuming all is well, you should be good to go!

Recommend Macfox's most popular product: Macfox X1S, it is worth your look, click to see more surprises!

Tips, Common Mistakes, and FAQs

What if the new BMS has a different wiring configuration or connector than the old one?

It’s quite common that a replacement BMS isn’t identical to the original. For example, your old BMS might have had an integrated LED indicator or a power switch lead that the new one lacks. Or the balance connector shape is different. In such cases, you’ll have to improvise:

If the connector is different, you can either move the pins/wires from the old connector to the new one (if you’re comfortable with de-pinning connectors), or just remove the old connector and directly solder the new BMS’s harness wires to the battery.

Soldering new balance leads to each cell group is time-consuming but ensures compatibility. It’s important to not mix up wires; do them one by one.
If the BMS lacks a feature (like an LED indicator board connection), you might have to do without that feature, or find a creative workaround.

Many LED battery gauges simply tap several points on the series string – you could wire those to the new BMS if it has the same tap points. Otherwise, you might lose the external battery meter function unless you find a BMS that supports it.
If the new BMS has extra features (say it has separate C- when your original didn’t), you can either ignore those (tie the charger negative to P- and not use C-), or utilize them by splitting the charge connector negative off and wiring it properly to C-.

The battery will work either way, but using separate C- can be beneficial if provided (it isolates charge cutoff from discharge cutoff in some designs).

The order of connecting wires – does it really matter?

In general, yes, the order can matter when making the final connections. The advice from experienced battery builders is often: Connect the main negative first, then balance leads, and connect the main positive last.

The reason is to prevent a scenario where the BMS ground is floating while balance leads are live – that can drive currents in wrong ways or even blow the BMS input resistors.

Some BMS are more forgiving, but some “may blow up if you attach B+ before the lower cells”.

By connecting B- (ground) first, you set the reference. Then as you connect each balance lead in order, the BMS incrementally sees the increasing voltage.

Finally, connecting B+ (if it wasn’t already continuous) gives the BMS the full pack voltage.

When removing a BMS, you’d logically do the reverse: disconnect B+ or the balance connector first, and B- last, to safely power it down.

In our steps, we effectively followed this safe sequence.

Should I equalize cell voltages before connecting a new BMS?

It’s a good idea to ensure all cell groups are at similar state-of-charge when installing a new BMS.

If one cell group was significantly higher or lower, the moment you hook them all into the BMS, it will immediately either trip a protection or start heavy balancing which could heat up the resistors.

Ideally, measure all cell group voltages before the swap.

If any one is more than ~0.2–0.3V different from the others, it might be wise to manually balance them first.

You can do this by charging low groups individually (with a single-cell charger or even a constant voltage power supply set to 4.2V, carefully) or by discharging high groups (e.g., using a resistor or small bulb).

This ensures the new BMS can operate without immediately triggering imbalance alarms.

Most of the time, if the battery wasn’t severely mismanaged, the cells will be close enough and the BMS will handle it by balancing over one or two charge cycles.

The battery still doesn’t work after BMS replacement – what now?

If you’ve wired everything correctly but the battery has no output, consider:

Pack is asleep: Some BMS ship in a “sleep” mode. Try plugging in the charger to wake it up.

Certain smart BMS also require a Bluetooth app to reset faults.

Check if the BMS has any documentation about this.
Blown fuse or switch: Ensure the battery’s output fuse (if any) didn’t blow during the operation.

Some packs have a fuse on the positive side that could have blown originally or during soldering if a short happened.

Also double-check any e-bike battery on/off switch if present.
Miswired balance lead: Re-inspect that each balance wire goes to the correct cell.

Even veterans can accidentally swap two wires, which might not blow the BMS but will confuse it and it may not enable output.

The voltages on each pin in ascending order should make sense.
BMS DOA or wrong type: It’s rare but possible the new BMS is defective or was the wrong kind (e.g., a LiFePO4 BMS which has different voltage thresholds, though those are usually labeled clearly as such).

Make sure it’s a Li-ion 42V cut-off type for 10S. If all else fails, testing with another BMS might be necessary, or investigating the cells again to ensure one didn’t go bad.

Any other tips for success?

Thermal Pads: If your BMS had thermal sensors, position them snugly against the cells (typically in the middle of the pack where heat might build).

If the new BMS came with thermal sensors, consider adding them if your old one didn’t have any – it’s an extra safety layer.

They usually attach to BMS with two wires and you can tape the sensor to a cell.
Waterproofing: If the battery casing was sealed or potted, after replacing the BMS you might want to re-seal openings to keep water out.

Use silicone or appropriate sealant but ensure it’s removable for any future repairs.
Regular Checks: After a successful replacement, it’s good to monitor the battery the first few uses.

Feel if the battery gets excessively warm during charging or discharging (a little warmth under load is normal; hot is not).

Also, maybe after a week or so, pop the case open again to check that none of the connections are getting discolored or that there’s no odd smell – just to be extra sure all is holding up.

Replacing a BMS can seem daunting, but with careful work, it’s quite rewarding to bring a battery back to life.

Always prioritize safety and double-check everything. With the new BMS properly wired, your 36V e-bike battery should be functioning reliably, with balanced cells and proper protection, ready to power many more rides.

Recommended Macfox new product: Macfox X7, it is worth your attention, click to see more surprises!

Conclusion

Replacing the BMS on a 36V Li-ion battery pack is a detailed process, but it’s very doable for a patient DIY enthusiast or electric bike owner.

The key is to work methodically: understand your battery’s wiring, follow safety protocols, and connect the new BMS wiring step by step in the correct order.

By using the guidance above and taking care at each stage, you’ll restore your battery’s safety mechanisms and performance.

A successful BMS replacement means your e-bike battery can charge, balance, and deliver power just like new – all while protecting those valuable cells for a longer lifespan.

Always remember, when dealing with lithium batteries, knowledge and caution are your best tools.

Ride safe and enjoy your rejuvenated battery pack!

How to Replace the BMS on a 36V Li-ion Battery Pack (Wiring Steps Guide)
