Upgrading an electric bicycle’s controller can greatly improve performance, but it often raises the challenge of adapting the cable system to the new controller.
Different e-bike models and controller brands use various connectors and wiring layouts, so a successful upgrade means ensuring every throttle cable, sensor, and power lead is correctly connected.
This guide provides an authoritative, step-by-step look at how to tackle cable-controller compatibility issues.
We’ll explain the wiring basics, highlight differences between different e-bike controllers, and give practical advice for ordinary users who want to upgrade their e-bike without technical mishaps.
Quick Summary: Cable System & Controller Adaptation
-
E-Bike Wiring Varies: Electric bike wiring harnesses and connector types differ widely by manufacturer. Never assume colors or plugs will match – always confirm each wire’s function via diagrams or a multimeter. For example, one brand’s red wire might not do the same job as another’s, so identify the 5V, ground, and signal wires before connecting anything.
-
Throttle & Sensor Compatibility: The good news is most throttles and brake sensors use similar signal types (e.g. 3-wire hall-effect throttles) that any controller can read if wired correctly. The challenge is adapting the connectors: you may need to splice wires or solder on new connectors if the plugs don’t match. Always match power-to-power, ground-to-ground, and signal-to-signal – color coding alone is not reliable.
-
Controller Differences: Swapping controllers between different electric bikes isn’t always plug-and-play. Many stock e-bikes use a single multi-pin cable (e.g. 8-pin or 9-pin) from the controller to the handlebars for throttle, brakes, display, etc. If your new controller uses separate connections instead, you’ll have to split or adapt that harness. Also, controllers from different brands almost always require their matching display unit to work correctly (communication protocols differ). Proprietary systems (Bosch, Yamaha, Shimano) cannot be cross-mixed with generic parts.
-
Upgrade Planning: For an ordinary user upgrading at home, preparation is key. Choose a controller that matches your e-bike’s voltage and motor power, and ideally one that includes compatible connector adapters or a wiring diagram. Before wiring, disconnect the battery and discharge any residual charge to avoid shorts. Label each cable as you unplug the old controller. If connector styles differ, consider using adapter cables or transferring the old connectors onto the new controller’s wires by soldering. Double-check every connection, then test the system carefully before riding.
Understanding E-Bike Cable Systems and Controller Connections
Electric bikes typically have a network of wires connecting all the controls and electrical components – this is the cable system or wiring harness.
The controller sits at the center of this network, linking the battery, motor, and various handlebar controls.
To successfully adapt a new controller, you first need to understand the key parts of the wiring system and how they interface.
Main Power Cables
These are the thick positive and negative wires from the battery to the controller.
New controllers might come with a different battery connector (for example, your bike’s battery uses an Anderson plug but the new controller has an XT60 or another type).
In such cases, you must either use an adapter or swap the connector to match.
Always ensure the connectors are high-current rated and firmly attached, as any loose connection here can cause major voltage drop or heat.
Motor Phase and Sensor Wires
If you have a hub motor, it typically connects to the controller via a bundle of wires: three large phase wires (to drive the motor) and five smaller Hall sensor wires (for feedback on motor position).
Some e-bikes use a single combined plug to connect all these motor wires in one go, while others use separate bullet connectors for phase wires and a multi-pin plug for the sensors.
For instance, many hub motors on kits use a 9-pin waterproof plug that bundles phases and sensor lines together.
If your new controller doesn’t support that single plug, you’ll need an adapter that splits the 9-pin motor cable into the separate phase and hall connectors that the controller expects.
Essentially, you match each of the motor’s wires to the new controller’s outputs (often by color or label), or use a conversion cable if available.
Handlebar Control Harness
Modern e-bikes often simplify wiring by using a 1-to-X cable (one multi-pin connector that splits into several) for the throttle, brake cut-offs, display, and sometimes lights.
A common design is the 1-to-4 harness, which has one 8-pin plug at the controller and four branches at the other end for throttle, two brake sensors, and the display.
Some systems use a 1-to-5 cable, adding a fifth branch for a headlight or other accessory (this extra line is often a brown wire for lights).
In practice, that means if your old controller had a 9-pin connector and your new one has an 8-pin, the difference is likely the headlight wire – the new controller might handle lighting on a separate lead or not at all.
Adapting in this case could be as simple as not using the extra light wire, or as involved as purchasing the correct 1-to-4 cable to match the new controller.

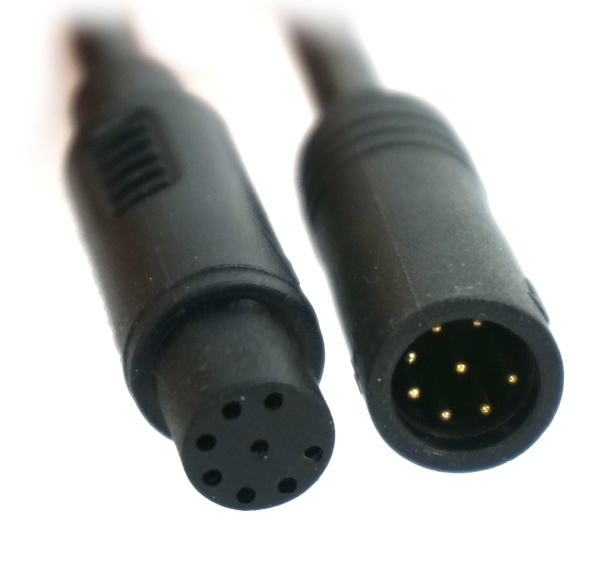

The image below shows an example of a typical multi-pin handlebar harness connector pair (male/female) used on e-bikes.

These waterproof connectors (often Julet or Higo brand) make installation easy, but they must match the controller.
You cannot plug an 8-pin harness into a 9-pin socket, so count the pins and get the appropriate matching cable if needed.
Connector Types and Pinouts
E-bike connectors come in many styles.
Older or more DIY kits use rectangular JST-SM plugs for throttles, sensors, etc., whereas newer bikes use round waterproof connectors (like Julet/Higo) that have a locking, weather-sealed design.
Importantly, even when connectors look the same, the internal pin wiring sequence can differ by manufacturer.
For example, you might find your pedal-assist sensor from one vendor has a 3-pin JST plug wired in a different order than the PAS input on another brand’s controller – if you connect them mismatched, it won’t work and could damage components.
Always verify each pin’s purpose.
Manufacturers sometimes provide pinout diagrams (as seen in Grin Technologies’ JST pinout standard), or you can use a multimeter and the component’s documentation to map out which pin is 5V, which is ground, and which carries the signal.
This careful approach ensures you adapt the wiring correctly rather than blindly trusting color codes.
In summary, understanding your bike’s wiring layout – from battery to motor to handlebar controls – is the foundation.
Once you know what each cable does and how it connects, you can make a plan to adapt or re-connect them to a new controller.
Adapting the Throttle Cable to a Different Controller
One of the most common questions is how to hook up the throttle cable when installing a new controller. Fortunately, most e-bike throttles are electrically similar.
The vast majority use a Hall effect throttle with a 3-wire cable: a +5V supply, a ground, and a signal wire.
When you twist the throttle, the signal line varies from about 0.8 V (zero throttle) up to ~4 V (full throttle), which the controller interprets as “go faster”.
This standard has made throttles largely interchangeable across controllers – as long as you connect the correct wires.
Physical Connectors
The tricky part is often the connector. Throttles might come with a simple 3-pin JST plug or with a fancy waterproof plug.
For example, many aftermarket throttles (such as those by Wuxing) feature a molded yellow or green waterproof connector on their cable.
That connector won’t plug directly into a controller; instead it plugs into the bike’s 1-to-4 harness, as noted by the manufacturer.
In the image below, you can see a full-twist throttle that has a yellow male Higo-style plug on it, which requires a matching female port on the wiring harness.

If your new controller doesn’t use the same harness system, you have two options: (1) Obtain the correct adapter or harness that the throttle can plug into, or (2) cut off the connector and wire the throttle directly to the controller’s throttle input leads.
Matching the Wires
If you end up splicing the throttle cable, be very careful to match functions, not colors.
Typically, red is +5V, black is ground, and the third wire (often green, blue, or yellow) is the signal output.
But as mentioned, different products don’t always follow the same color code.
Always identify the controller’s throttle wires first: use its manual or tracing from the circuit – often the controller’s throttle connector will have a red wire (5V out) and black (ground) you can confirm with a multimeter.
Once you know which controller wire is 5V and ground, the remaining one is the signal input.
Now look at the throttle’s wires: if it has the same colors (red, black, other), it’s likely red to red, black to black, and the other to the controller’s signal.
If the colors differ or are unknown, use a multimeter on the throttle: with the throttle unplugged but connected to a 5V source, the signal wire will show a variable voltage as you twist the throttle.
That wire should go to the controller’s signal input. Never blindly connect on color alone, as a wrong connection could send 5V into the signal line or vice versa, potentially frying the Hall sensor.
In short, identify and pair 5V to 5V, ground to ground, and signal to signal.
Throttles with Extra Wires
Some throttles have 4 or 5 wires – these often include additional features like battery level LEDs or an on/off key switch integrated into the throttle.
A 4-wire throttle, for example, might have an extra on/off switch line; a 5-wire might have both a switch and battery indicator.
If your old controller supported these (e.g. had an “ignition” or key lock wire, or a separate connector for throttle battery indicator), you’ll need to adapt those as well.
A new generic controller often has a single thin “ignition” wire that you must connect to battery positive through a switch (or directly, to turn the controller on).
In adapting, you could connect the throttle’s on/off button wires to the controller’s ignition circuit so that the throttle’s switch controls the controller power.
If the throttle has battery LEDs, those typically tapped into full battery voltage on one wire – you would connect that to the new controller’s battery positive (if it has a spot for lighting or indicators) or directly to the battery output (with proper fuse) if you want the LEDs to work.
However, many people simply leave these extra wires unused if the new setup doesn’t support them. The core throttle function will work with just the 3 hall sensor wires.
Securing Connections
After matching the throttle wires, ensure all splices are solid. It’s recommended to solder the connections and use heat-shrink tubing to insulate each wire.
Good insulation is important to prevent any short, especially because the throttle’s 5V and signal lines are delicate – a short between them or to the battery line could damage the controller.
If soldering isn’t an option, use correct size crimp connectors or a small 3-pin connector pair that you wire in yourself.
Once connected, test the throttle gently: with the bike on a stand, turn on the system and slowly twist the throttle – the motor should start to spin smoothly.
If nothing happens or it’s erratic, stop and double-check your wiring (and use a voltmeter to see if the throttle signal reaches the controller).
In summary, adapting a throttle cable mainly involves figuring out the wiring scheme and possibly changing the connector. By confirming the pin functions and securely joining the wires, you can make virtually any throttle cable work with a new controller.
Controller Compatibility Between Different E-Bikes
Adapting a controller from one electric bike to another can range from straightforward to impossible, depending on how different the systems are.
Here we’ll discuss what to watch out for when mixing and matching controllers between e-bikes:
Universal Controllers vs. Proprietary Systems
If both your old and new controllers are generic aftermarket units (common with conversion kits), they likely use similar operating principles and signals.
Many of these follow a quasi “standard” – for example, almost all use 0-5V analog throttle signals, 5V sensors, etc., which means electrically they’ll get along.
The main differences will be connector types and maybe communication protocols with displays.
On the other hand, if you attempt to use a controller from a big brand bike (say a Bosch or Yamaha controller) on a different bike or with generic parts, you’ll hit a wall.
Every e-bike component manufacturer uses different protocols – there’s no universal standard at the brand level.
A Bosch display won’t talk to a Yamaha controller, a Shimano motor won’t accept a generic controller’s signals, and so on.
These proprietary systems are deeply integrated; their motor, battery, controller, display are all coded to work only with each other.
Cross-brand swaps in such cases are not feasible. Thus, “controllers between different electric bikes” usually means sticking to controllers that are designed as aftermarket or come from similar generic platforms.
Displays and Communication
One crucial compatibility issue is the display (also called the HMI – Human-Machine Interface).
Generic controllers (like those from KT, Lishui, etc.) use their own communication protocols to the handlebar display units.
If you use a KT (Kunteng) controller, you generally need a KT-compatible display (e.g. LCD3, LCD8H, etc. from KT) – mixing it with a Bafang display or another brand’s display will not work because the data format is different.
In practical terms, when you change to a different brand controller, plan to change the display as well as a pair.
In the earlier example forum discussion, an expert flatly stated that any controller change, unless it’s the same manufacturer, will require a matching display.
The throttle and brake connectors may be adaptable, but the display either won’t show anything or won’t allow the system to power on if it’s incompatible.
So, if your upgrade kit doesn’t include a new display, verify that it will work with your existing one; otherwise, budget to get the proper display unit.
Brake Sensors and PAS
Luckily, brake cut-off sensors (the switches that cut motor power when you squeeze the brakes) are generally simple and cross-compatible.
They’re usually just 2-wire circuits that either close or open when the brake lever is pressed.
Any controller that has e-brake inputs will work as long as you wire those two wires to the controller’s brake connector (orientation usually doesn’t matter for a simple switch).
You might have to change the connector plug, but electrically it’s straightforward. Pedal Assist Sensors (PAS) are also often 3-wire devices (5V, ground, signal pulses).
Most generic controllers expect a standard PAS signal (a series of pulses as the pedals turn).
If your PAS sensor is a typical magnet disc with a sensor, it should plug or wire into the new controller fine, again provided you match the 5V and ground correctly.
One caution: some newer bikes use advanced PAS like torque sensors or CAN-bus based sensors – those would not be compatible with a basic generic controller.
But those are usually found only on high-end or proprietary systems, which you’re less likely to mix in a casual upgrade.
Voltage and Power Matching
When adapting a different controller, make sure its specifications suit your bike’s components:
Battery Voltage
Controllers are built for specific voltage ranges (e.g. “36V/48V” or “52V” etc).
Using a controller outside its range can either lead to it not powering on (if voltage too low) or being damaged (if voltage too high).
So a 36V controller on a 48V battery – usually not okay unless explicitly rated for both. Check that the new unit supports your battery’s voltage.
Current and Motor
If you upgrade to a controller with higher current output (amps) to get more torque or speed, ensure your battery can supply it and your motor can handle it.
For instance, an ordinary user might have a 15 Ah battery with a 40 A BMS, and the stock controller was 20 A. Upgrading to a 35 A or 40 A controller is possible to unlock more power, but you must confirm the battery’s discharge limit (the BMS) is at least equal to that and the motor doesn’t overheat with the extra current.
This kind of upgrade can yield more performance, but do it within reason. A huge controller on a small battery will trigger voltage sag or BMS cutouts; a too-powerful controller on a motor can burn the windings if abused.
Connector Sprawl
Different controllers come with different connector setups. A plug-and-play swap is easiest when the new controller has the same connectors for motor, battery, and controls.
Some aftermarket controllers are sold in variants – one with all wires loose or simple connectors (for DIYers), and another with Julet waterproof connectors already installed for popular e-bike models.
If you can find a version that matches your bike’s harness, go for it. Otherwise, prepare for some wiring work.
As one expert advised, many people prefer to find a controller that “fully documents the connectors” or even comes with adapters, because otherwise “you’ll need to splice in a lot of connectors” which can be daunting.
If your bike uses “special bespoke connectors”, you might have to build your own adapters from connector kits or solder wire-to-wire for a secure connection.
Weatherproofing is important – when bypassing waterproof connectors, seal the connections with heat shrink and maybe dielectric grease, because once you cut out that nice sealed connector, the wires are more exposed.
Mounting and Form Factor
While not a wiring issue, remember that the new controller should physically fit on your bike and be mounted securely.
Different e-bikes have controllers of various shapes (internal, external, different case sizes). Ensure the new one can be attached in a stable way and has adequate cooling (don’t tuck a high-power controller into a tiny unventilated spot).
In essence, adapting a controller across bikes means checking electrical compatibility (voltage, current, signal types) and connection compatibility (wires, connectors, protocols).
Where differences exist, you can often overcome them with the right adapters or by replacing additional components (like the display).
But always do research: look up if others have successfully used that controller on your bike model or with your motor.
When in doubt, use the same brand system or an established upgrade kit rather than a random mix-and-match, as it increases the likelihood that things will communicate and connect properly.
Upgrading Your E-Bike Controller: Step-by-Step Guide
Finally, let’s put it all together into a stepwise process. If you’re an average e-bike owner with basic DIY skills looking to upgrade your controller and adapt the wiring, follow these guidelines for a smooth experience:
1. Plan Your Upgrade and Gather Parts
Start by determining exactly what you want to achieve (e.g. more power, replace a faulty unit, add features).
Choose a new controller that suits your battery voltage and motor. It’s often wise to purchase a controller kit that includes a matching display and any special harnesses – this ensures compatibility out of the box.
Also, get any adapter cables available (for motor connector, throttle, etc.).
Common adapters include phase/hall extension cables, or one that converts a single harness to individual plugs. Having the right parts beforehand will save a lot of hassle.
2. Prepare a Safe Workspace
Always disconnect the battery completely before touching any wiring. Remove the battery from the bike if possible.
After disconnecting, press the power button or wait a few minutes to drain any residual charge in the controller capacitors. This prevents accidental short-circuits.
Gather tools you’ll need: screwdrivers or hex keys to remove the old controller, a multimeter for testing, wire cutters/strippers, soldering iron (or crimp connectors) for any splicing, electrical tape or heat shrink tubing, and zip-ties for tidying up cables.
If you have them, labels or masking tape are extremely helpful.
3. Document and Label Everything
Before removing the old controller, take clear photos of all the connections.
Note which cables go where. It’s very easy to forget the wiring arrangement once things are unplugged, so make a simple diagram or use labeled stickers on each connector.
For example, tag the throttle plug on both the controller side and the throttle side with a “T”, brake with “B”, etc. Label each cable before disconnecting it – this prevents mistakes and makes the re-install much easier.
Many experienced tinkerers will even write down the wire colors and functions if known (e.g. “yellow – wheel speed sensor” or “green – throttle signal”) for reference.
4. Remove the Old Controller
Unscrew or unbolt the old controller from the bike’s frame (common locations are under the battery mount, behind a battery cover, or in the frame tubing).
As you detach any mounting hardware, keep the screws and brackets – you may reuse them.
Carefully unplug all connectors one by one. If a connector is tight, wiggle gently; don’t yank by the wires.
With everything disconnected, the controller should come free. Set it aside – do not throw it away yet, because you might need to salvage some connectors from it for reuse.
5. Transfer Key Connectors (if needed)
Compare the connectors on the new controller with those on the old one.
If you notice any major differences – for instance, your old controller had a big yellow XT60 for the battery but the new one has bare wires, or the old one had a single motor plug whereas the new has separate leads – now is the time to adapt.
The quickest method is often to transplant the old connector onto the new controller’s wires.
For example, if the new controller lacks a battery plug, solder your battery’s matching connector onto its power wires (ensuring correct polarity!).
If the motor harness plug is different, you might take the plug from the old controller and wire it to the new one’s motor phase/hall wires (this can be a bit advanced, but it guarantees the motor will plug in exactly as before).
Whenever soldering new connectors, do them one wire at a time to avoid cross-wiring, and use heat shrink or quality electrical tape on each connection.
If you’re uncomfortable with soldering, an alternative is to use adapter cables or pigtails that convert one connector type to another (for instance, adapters are sold to go from a 9-pin motor plug to separate halls/phases).
Use those if available – it’s cleaner than cutting wires. In any case, make sure high-current connections are very secure; a poor connection on battery or phase wires can fail under load.
6. Install the New Controller
Position the new controller in the old one’s place (if it’s a different size, you may need to get creative with mounting – use brackets or zip ties as temporary holds if necessary).
Secure it firmly so it won’t rattle. Now reconnect all the cables according to the labels and notes you made earlier.
It’s usually best to start with the motor phase and hall sensor wires, since they are distinct and important.
Then connect the throttle, brake sensor plugs, PAS sensor, display, and any other accessory (lights, etc.) one by one.
Do not force any connector – if something doesn’t fit, double-check if it’s the right pair.
With custom wiring, match wire functions as discussed in previous sections.
If the new controller has different connector types (for example, your throttle was a 3-pin JST but the new controller has a 3-pin waterproof plug), you will have spliced those in the previous step or be using an adapter.
Now is when those adapted connections get plugged in. Use the photos you took to verify that every required connection (motor, battery, throttle, PAS, brakes, display, etc.) has been made.
It’s wise to leave optional connections (like regenerative brake, lights, programming cables) disconnected at first if the system doesn’t require them to run.
7. Double-Check and Secure Wiring
Go through each connection one more time.
It can help to use a checklist: Battery to controller – connected?
Motor phases – all three connected and tight?
Hall sensor plug – connected?
Throttle – connected to throttle input?
Display – connected?
Brake cut-offs – connected?
PAS – connected?
Any stray unconnected wires on the controller should be identified (some controllers have extra features like a reverse line or horn output; make sure anything critical isn’t left out).
Ensure no bare wire is exposed anywhere. Tug each crimp or soldered joint gently to confirm it’s strong.
Once satisfied, organize the cables neatly. Use zip ties to bundle excess length and to keep wires away from moving parts (like wheels or pedals) and sharp edges.
Good cable management will prevent future accidental disconnections or chafing of wires.
8. Power On and Test
Reattach your battery and toggle the bike’s power on (if there’s an on/off switch or key, use that).
Carefully watch the controller and display as you power up.
Ideally, nothing unexpected happens – no smoke (that’s good!), and the display should light up.
If the display shows an error code or nothing lights at all, immediately turn the system off and re-check wiring (common mistakes are a missed connector or a mis-pinned wire on something like PAS or throttle causing a fault).
Assuming it powers on normally, do a basic function test with the wheels off the ground.
Gently apply the throttle – does the motor spin up smoothly? Test the brake levers – when you press them, does the motor cut out as it should?
Pedal (if you have PAS) to see if pedal assist kicks in. Check the display readings (speed, etc.) if applicable.
If anything isn’t working right, you may have a wiring mix-up: for example, if the throttle doesn’t respond but PAS does, the throttle cable might not be correctly wired or the controller’s settings might be expecting something else.
Double-check those connections and also ensure the throttle wasn’t turned slightly when powering on (some controllers won’t initialize if throttle isn’t at zero, as a safety feature).
9. Fine-Tune and Ride
Once the bike is responding correctly on the stand, do a road test in a safe, open area.
Start slowly – listen for any unusual noises or vibrations. Ensure the controller doesn’t cut out under load (if it does, it might indicate a weak battery connection or a safety limit being hit).
Try all assist levels, trigger the brakes, use the throttle – make sure everything functions.
If the new controller has programmable settings (via an app or display), now is a good time to configure things like wheel size (for correct speed reading), battery voltage, current limits, and pedal assist settings to your preference.
After a short ride, feel the controller and motor temperature – a bit warm is normal under strain, but very hot could mean something is mismatched or working too hard.
By following these steps, even an “ordinary” rider with no special training can successfully upgrade and adapt a new controller.
The keys are patience, careful labeling, and understanding that e-bike wiring is not magic – it’s logical once you identify each wire’s job.
As a final piece of advice: if at any point you feel out of depth, don’t hesitate to seek help.
