Controller failure is one of the harder e-bike problems to diagnose because the controller sits between nearly every major electrical part. A battery with low voltage, a stuck brake cutoff, a loose motor connector, or a damaged throttle can all make a healthy controller look bad. The goal is to narrow the fault safely before you buy parts or keep riding a bike that may shut down under load.
This guide focuses on practical signs of electric bike controller failure, the checks a rider can do without board-level repair work, and the point where a shop or replacement controller is the smarter path. If your issue is only a display message, throttle response, or wiring fault, use the linked troubleshooting guides in those sections instead of forcing every symptom into a controller diagnosis.
Quick Diagnosis: Is the Controller Actually Failing?
A bad controller usually shows up as a pattern, not a single odd moment. One brief cutout after a fully drained battery may be normal protection behavior. Repeated power loss, jerky acceleration, burning smell, melted connectors, or motor behavior that changes with heat points more strongly toward the controller or its wiring.
| Symptom | Why the controller is suspect | Check first |
|---|---|---|
| Bike powers on but the motor will not engage | The display and battery may be working while the controller does not send usable output to the motor. | Brake cutoff, throttle connector, pedal-assist sensor, motor plug |

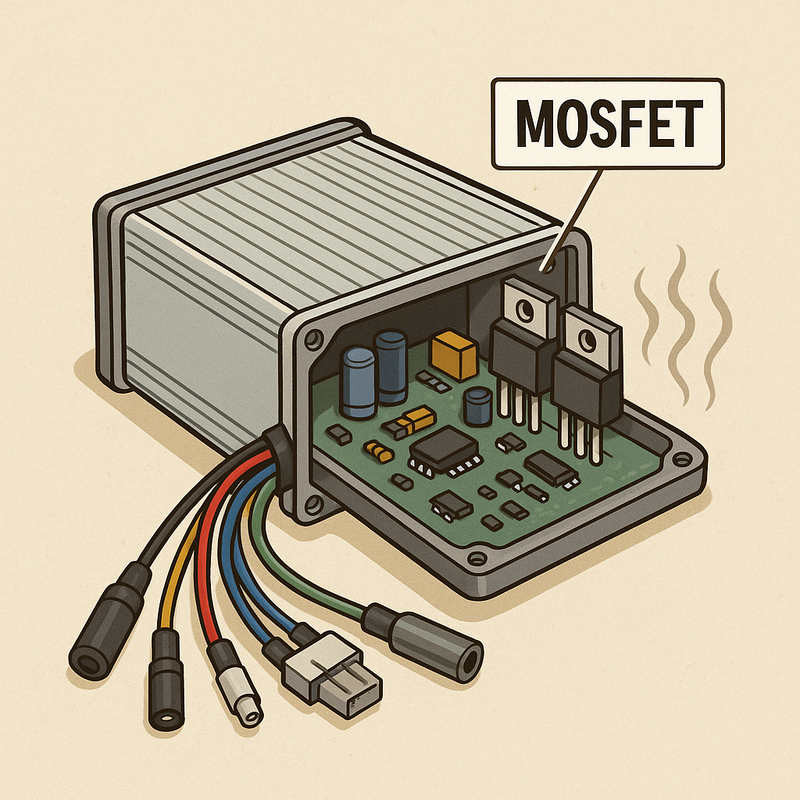

| Motor cuts out under load or on hills | Heat, current limits, weak phase connections, or a damaged MOSFET can appear only when current demand rises. | Battery voltage sag, loose connectors, controller overheating |
| Jerky acceleration or random surging | Signal input may be unstable or the controller may be misreading throttle or hall-sensor data. | Throttle, hall-sensor wiring, water in connectors |
| Burnt smell, visible heat damage, or melted wires | These are strong warning signs of electrical failure and should not be ignored. | Stop riding, disconnect power, inspect with a qualified technician |
| Display error appears after rain or washing | Moisture can trigger controller, wiring, or sensor faults. | Dry connectors, inspect seals, check display-specific code guidance |
If you only ride one electric bike, diagnosis is partly about repeatability. Note whether the problem happens at startup, after bumps, in wet weather, under heavy throttle, or after several miles. That pattern often tells you more than swapping parts immediately.
Controller Failure Symptoms Riders Commonly Notice
The bike turns on, but the motor stays silent
This is the classic controller-failure complaint, but it is also the easiest one to misread. A display can light up even when the controller is not receiving a valid run signal. A brake lever sensor may be stuck in cut-off mode. A throttle connector may be loose. A pedal-assist sensor may have shifted away from its magnet ring. Start with those checks before deciding that the controller is dead.
Power cuts out when the bike is under load
Cutouts during climbing, hard acceleration, or carrying extra weight often point to current demand. The controller may be overheating or protecting itself, but the battery can also be sagging under load. If the display shuts off completely, test the battery and main power path first. If the display stays on while motor power drops away, the controller, motor-phase wiring, brake cutoff, or signal wiring becomes more likely.
Acceleration feels uneven, delayed, or too aggressive
Jerky response can come from the controller, but throttle signal problems are common. If the problem follows throttle use more than pedal assist, compare your symptoms with the throttle troubleshooting guide. Do not keep testing full-throttle starts if the bike surges unexpectedly; that can create a riding hazard and can stress the controller further.
Heat, smell, or damaged connectors appear around the controller
Heat is not automatically failure. Controllers work hard and may become warm, especially on hills or hot days. A burnt plastic smell, discoloration, melted insulation, loose pins, or repeated shutdown after cooling down is different. Those signs mean you should stop riding and avoid repeated test rides until the electrical path has been inspected.
Controller or Something Else? Separate the Common Lookalikes
Before replacing a controller, rule out the parts that commonly imitate a bad one. The controller is a hub for power and signals, so a fault upstream or downstream can appear as controller failure even when the controller is responding correctly.
| Possible fault | How it can mimic controller failure | Best next step |
|---|---|---|
| Battery or BMS | Low voltage, BMS protection, or voltage sag can shut the bike down before the controller can work normally. | Check charge, terminals, and battery protection behavior; use the BMS guide for deeper battery-management symptoms. |
| Fuse or main power connection | A blown fuse or weak power connector can create no-start or intermittent shutdown symptoms. | Inspect the correct fuse path and rating with the e-bike fuse guide. |
| Throttle | A damaged throttle or loose signal wire can cause no response, lag, or sudden surging. | Check the connector, voltage signal, and physical throttle return in the throttle troubleshooting guide. |
| Display or settings | Some displays block assist levels, report faults, or fail to send the expected command to the controller. | Compare symptoms with the e-bike display troubleshooting guide. |
| Motor and hall-sensor wiring | Loose phase wires or hall-sensor wires can cause rough starts, error codes, or motor stutter. | Use the rear hub motor wiring guide if symptoms change after bumps or rear-wheel work. |
| Brake cutoff sensor | A stuck cutoff tells the controller not to drive the motor even when the bike is powered on. | Unplug one brake sensor at a time only if your model guidance allows it, then reconnect before riding. |
Safe Checks Before You Replace the Controller
Work slowly and disconnect power before touching controller plugs. Do not short battery terminals, probe live connectors carelessly, or open a sealed controller box unless you know how to handle electronics safely. The checks below are meant to separate simple external faults from likely controller failure.
- Document the symptom. Write down when it happens: startup, rain, bumps, hills, throttle use, pedal assist, or after the bike warms up.
- Check battery state first. Charge the battery fully, inspect contacts, and watch whether the display shuts down or only motor output disappears.
- Inspect connectors without pulling wires. Look for loose plugs, corrosion, bent pins, water, heat marks, or connectors that do not lock firmly.
- Check brake cutoff behavior. Make sure levers return fully and no brake symbol or cutoff behavior remains active.
- Compare throttle and pedal assist. If only one input mode fails, the input device may be the fault rather than the controller.
- Let an overheated system cool. If performance returns after cooling, overheating or current demand is part of the diagnosis.
- Stop if you smell burning. Do not keep riding or repeatedly reconnecting power when insulation, smoke, or burnt odor appears.
A simple reset can help when settings, display communication, or temporary protection behavior caused the issue. Follow the steps in resetting the controller if your bike powers on and there is no sign of heat damage, water damage, or burnt wiring. A reset is not a fix for a short circuit, failed MOSFET, melted connector, or controller that repeatedly cuts out under the same load.
Basic Tests That Reduce Guesswork
You do not need to open the controller case to improve the diagnosis. Most useful checks happen at the system level: does the bike receive stable battery power, does the controller receive a valid ride command, and can it send power to the motor without heat or shutdown? If you are not comfortable using a multimeter around a battery-powered circuit, stop at visual inspection and connector checks.
- Battery voltage check. A fully charged pack should be near the expected voltage for its system. A pack that drops sharply under load may trigger shutdown even if the controller is healthy.
- Connector movement test. With the battery off, inspect and reseat external plugs. A connector that changes the symptom when moved is a wiring clue, not proof of controller failure.
- Throttle signal comparison. If pedal assist works but throttle does not, the controller output stage may be fine. The input path should be checked first.
- Motor resistance and drag. A motor cable fault or internal motor issue can overload a controller. Unusual resistance, grinding, or hot phase wires should be investigated before replacing parts.
- Heat timing. Note whether the fault appears immediately, after a few minutes, or only on hills. Heat-related timing is important evidence for overload or failing internal components.
Avoid the two common mistakes: replacing the controller because it is the most expensive-looking electrical box, or repeatedly riding the bike to reproduce a fault that may already be unsafe. If the problem is intermittent, take notes, photos, and short videos of the display or wiring area before disconnecting parts. That record helps a technician confirm whether the fault belongs to the controller or to the part feeding it bad information.
Why E-Bike Controllers Fail
Overheating and sustained high load
Controllers manage current. Long climbs, heavy cargo, low tire pressure, repeated hard starts, high ambient temperature, or poor airflow can push the controller near its thermal limit. When this happens repeatedly, solder joints, capacitors, connectors, and power transistors can degrade. A bike that only fails after ten minutes of climbing is telling a different story from one that fails the moment it turns on.
Water intrusion and corrosion
Moisture can create intermittent faults that come and go. The bike may behave normally after drying, then fail again after rain. Corrosion in a connector can increase resistance and create heat. Avoid pressure washing the controller area, battery mount, display, throttle, and motor connectors. If water has entered the controller case, replacement is often safer than trying to trust it again.
Wrong voltage, incompatible parts, or unsafe modifications
Controllers are matched to voltage, current limits, motor type, sensors, display protocol, brake cutoffs, and connector layout. Installing a controller that merely looks similar can create new faults or damage parts. The same caution applies when mixing displays, throttles, aftermarket batteries, or motors that were not designed for the system.
Short circuits and damaged phase wires
A pinched wire, crushed connector, or damaged motor cable can overload the controller. If a new controller fails quickly after installation, suspect the connected part or wiring path, not only the replacement controller. Inspect motor phase wires and hall-sensor plugs carefully before powering the bike again.
Reset, Repair, or Replace: How to Choose
The right next step depends on symptom severity and repeatability. A controller that is temporarily confused is different from a controller that has overheated, burned, or failed under load multiple times.
| Situation | Reasonable action | Why |
|---|---|---|
| Display is on, no visible damage, symptom appeared after setting changes or battery reconnection | Try a reset and connector inspection | The fault may be communication or protection logic rather than hardware damage. |
| Problem appears only with throttle, while pedal assist still works | Diagnose throttle and brake cutoff first | The controller may be responding correctly to a bad or missing input signal. |
| Problem appears after rear wheel service or bumps | Inspect motor and hall-sensor wiring | A loose motor connector can create stutter or no-drive symptoms. |
| Burnt smell, melted connector, smoke, repeated overheating, or visible board damage | Stop riding and replace or have the system inspected | Continued testing can damage the motor, battery path, or wiring harness. |
| Controller has confirmed internal failure and the rest of the system tests normally | Use the correct replacement controller | Follow model-specific fitment and connector checks in the controller replacement guide. |
Board-level controller repair is not a normal rider maintenance job. Some faults can be repaired by an electronics technician, but many sealed e-bike controllers are more practical to replace as a matched unit. If you replace the controller without fixing the original overload, water, or wiring cause, the new controller may fail again.
When to Stop Riding Immediately
Do not treat every controller symptom as a roadside inconvenience. Electrical faults can affect acceleration, braking cutoffs, and power delivery. Stop riding and disconnect the battery if you notice any of the following:
- Burning smell, smoke, melted insulation, or a connector too hot to touch.
- Motor surging that makes speed hard to control.
- Repeated shutdown under traffic conditions or while climbing.
- Water inside the controller box or connectors after a ride.
- A new error code that returns immediately after reset.
- Macfox model-specific code behavior that matches the Macfox X1S error code guide.
How to Prevent Controller Problems
Prevention is mostly about reducing heat, moisture, and connector stress. The controller does not need daily attention, but a few habits can prevent many repeat failures.
- Keep connectors locked, dry, and free of corrosion.
- Avoid pressure washing near the controller, battery mount, display, throttle, and motor plugs.
- Use the correct battery voltage and approved replacement parts.
- Do not overload the bike beyond its intended use, especially on long climbs.
- Fix rubbing brakes, low tire pressure, and drivetrain drag that force the motor to work harder.
- Give the bike time to cool after demanding rides before another hard climb or heavy throttle use.
- Investigate repeated fuse, display, throttle, or wiring faults instead of resetting and riding again.
FAQ
How do I know if my e-bike controller is bad?
Look for repeated patterns: the display powers on but the motor will not run, the motor cuts out under load while the display stays on, acceleration becomes unpredictable, or the controller area shows heat damage or a burnt smell. Confirm battery, brake cutoff, throttle, display, fuse, and motor wiring before replacing the controller.
Can resetting the controller fix the problem?
A reset can fix settings or temporary communication problems. It will not repair burned components, water damage, melted connectors, a shorted motor cable, or a controller that overheats repeatedly under the same riding conditions.
Can the display work if the controller has failed?
Yes. The display may still receive power while the controller cannot drive the motor correctly. The reverse can also happen: a display or communication fault can make the controller appear bad. That is why display-specific symptoms should be checked separately.
Is controller repair cheaper than replacement?
Sometimes, but only when the fault is clear and a qualified technician can repair the board safely. For many sealed e-bike systems, a correct replacement controller is more predictable than board-level repair. The replacement must match voltage, current, connectors, display protocol, and motor type.
Can I ride with a failing controller?
Do not keep riding if the bike surges, shuts down repeatedly, smells burned, or shows heat damage. If the symptom is minor and you are only moving the bike for diagnosis, ride slowly in a safe area and stop immediately if behavior changes.
Bottom Line
Electric bike controller failure is best diagnosed by separating power, signal, and wiring symptoms before buying parts. Start with the safe external checks, use reset only when there is no sign of hardware damage, and stop riding when heat, smell, water, or unpredictable acceleration appears. If the controller is confirmed bad, replace it with the correct matched unit and fix the root cause so the next controller does not fail the same way.
