As Macfox E-Bike owners know, their bikes make life easy. Cruising around town without effort has never been so enjoyable! Hello fellow riders! If you own one of Macfox Ebikes yourself, you know the joy it brings in cruising effortlessly around town.
But just like any tech device, your E-Bike might occasionally act up. Perhaps its speed readings are off, its battery level has fluctuated, or error codes begin flashing across its display screen.
No need to panic! I am here to guide you through some simple steps to reset your Macfox E-Bike controller and get everything back on track.
What’s the Deal with the E-Bike Controller?
To start things off right, let's discuss what an e-bike controller actually does. Think of it like the brain of your E-Bike; its primary responsibility is managing battery power, motor speed adjustment, and keeping tabs on any critical data during your ride. So when something goes awry with the controller it can significantly impact your ride experience; knowing how to reset it quickly could save your ride!
When Should You Reset the Controller?
Resetting your controller may be necessary in certain instances:
-
Speed Feels Off: The display is jumping around or freezing, and the speed readings aren’t making sense.
-
Battery Acting Weird: The battery level seems wrong, or it’s not charging properly.
-
Annoying Error Codes: Error codes like E001 to E009 are showing up on your display and won’t go away.
How to Reset Your Macfox E-Bike Controller
Ready to reset? Just follow these easy steps:
-

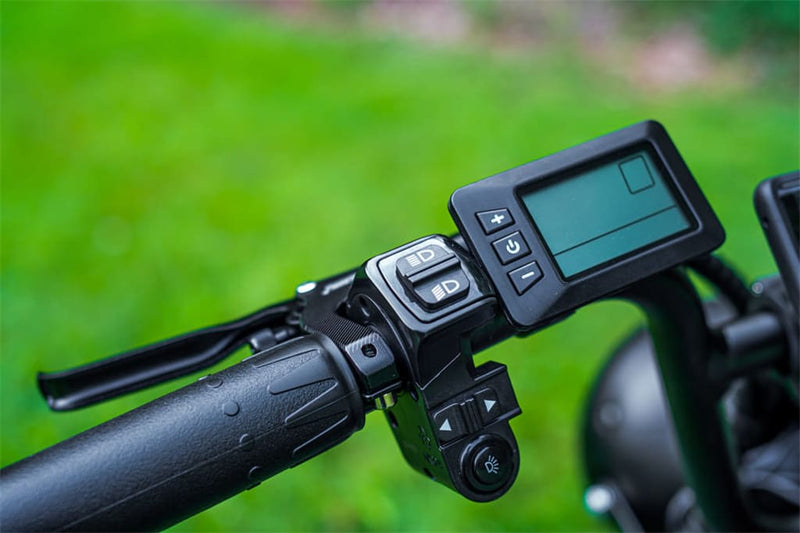

Turn Off the Bike: Hold down the “M” button on your display to power down the bike completely. Make sure it’s off before you do anything else.
-
Disconnect the Battery: Safely unplug the battery from the controller. Give it about 30 seconds—this lets the system fully discharge, which is key for a successful reset.
-
Check All the Connections: While the battery’s unplugged, take a minute to check the controller’s connections. Depending on your setup, you might have either a 5-pin or 7-pin wiring system. Here’s what to look for:
- Pin 1: Battery positive (input)
- Pin 2: Ground (GND)
- Pin 3: Ignition lock
- Pin 4 & 5: Communication receive (Rx) and send (Tx)
- Pin 6 & 7: Throttle signal and 5V power supply (if directly connected to the controller)
Make sure everything’s plugged in nice and tight—loose wires could be the culprit.
-
Reconnect the Battery: Once you’re sure everything’s connected properly, plug the battery back in.
-
Power On the Bike: Hold the “M” button again to turn your bike back on. The controller will reboot and reset itself to the default settings.
-
Check the Display: Look at your display to make sure everything’s back to normal. If the error codes are gone and the readings look good, you’re all set!
Fine-Tuning After the Reset
After performing a reset, it may be necessary to adjust certain settings so everything works perfectly:
Setting Mode: Press and hold both "+" and "-" buttons simultaneously for 3 seconds to access the Settings Mode.
Backlight Brightness: Adjust backlight brightness so it is easier to see in various lighting environments.
Switch Units: Alter between kilometers and miles as necessary, to your personal taste.
Voltage Mode: When setting up the right battery voltage - 36V or 48V-, make sure it is correctly selected in Voltage Mode.
There are various settings you can configure, such as assist levels, wheel size, and speed limits. Make your ride exactly how you like it by customizing all these aspects!
What If You Still See Errors?
If after resetting the controller but you still see error codes displayed on your E-Bike's display, here is what they indicate and how you can address them:
-
E001: This error indicates that either data isn't being sent from its controller to the display, or is incorrect. Check all wiring connections between them to make sure everything is secure and properly aligned before performing a reset if necessary; more persistent issues might require closer analysis of communication lines.
-
E002: Similar to E001, this error indicates that the controller isn't receiving data from the display correctly. Again, inspect all connections, particularly communication cables for any damage or loose connections which could impede data flow.
-
E003: If this error persists after being reset, the controller may require professional repairs or replacement - for this reason it's wise to reach out to Macfox customer support or an accredited technician immediately.
-
E004: This code indicates a Hall sensor problem within the motor. Hall sensors play a vital role in sensing where rotor positions lie within its frame, so when this error appears it should be carefully examined along with all motor connections and wiring for signs of damage or fraying.
-
E005: This error indicates the motor is experiencing phase loss due to improper connections or damaged wires. Care should be taken when inspecting motor and controller connections to make sure all wires are intact and connected securely.
-
E006: This error indicates throttle-related problems. It could be triggered by either malfunction in the mechanism itself or issues connecting it to its controller; to ensure it functions freely and is secure, make sure to test that connection regularly.
-
E007: This code indicates a brake sensor issue. Brake sensors are essential in safely cutting power to the motor when applying brakes; as such, check both lever sensors and their connections to make sure that they're functioning correctly.
-
E008: This code indicates an issue with the pedal assist sensor. It could either be malfunctioning or misalign, so to be on the safe side ensure it has been correctly installed with its magnet ring in its proper place.
-
E009: This error code occurs when your motor has fallen under voltage protection, most often as a result of battery issues. Ensure your battery is charged up and within its ideal voltage range before troubleshooting further; if issues still remain, check on all connections within it as well as potentially change to another battery altogether.
Understanding the various error codes can help you more quickly identify what might be amiss with your E-Bike and take appropriate measures to fix it. If issues still persist after trying these fixes, don't hesitate to seek professional assistance.
Keep Your Ride Smooth – Call to Action
Resetting your Macfox E-Bike controller can be a quick and simple solution to many minor issues that might arise during use.
But if, despite taking all these steps and things still don't seem right for you, don't be intimidated to seek professional assistance.
Your bicycle might need extra TLC from an experienced technician, or you might require support from Macfox customer services for further assistance.
Make sure that regular check-ups and maintenance keep your E-Bike operating at peak performance; doing so will enable you to enjoy every ride on Macfox! Keep riding, exploring, and make every moment count while out exploring!
FAQs
What should I do if my Macfox E-Bike shows an E001 error?
Check the connection between the display and the controller. Secure any loose wires and reset the controller.
How do I access the settings mode on my Macfox E-Bike?
Press and hold both the “+” and “-” buttons for 3 seconds to enter the settings mode.
What does the E009 error mean on my E-Bike display?
E009 indicates that the motor is under voltage protection. Check your battery charge and voltage connections.
