Where is the Fuse on an Electric Bike?

    • By Macfox Bike
    • Sep 13
    Where is the Fuse on an Electric Bike | Macfox
    Understand the role of the fuse in an electric bike. Learn how to locate it, identify a blown fuse, and safely replace it.

    Electric bikes have quickly become an attractive transportation alternative, providing convenience and sustainability benefits that surpass those of other forms of travel.

    However, like any electrical device, e-bikes may sometimes experience technical issues. A key component in an e-bike is its fuse.

    Knowledge of how and where fuses work is key when something goes wrong on an e-bike, yet many owners remain ignorant of their significance in the electrical system.

    This article will cover everything you need to know about the fuse on an electric bike, from where to locate it to how to identify a blown fuse and take steps to address issues related to its usage.

    Is There a Fuse on an Electric Bike?

    Yes, most electric bikes include fuses as a safety mechanism designed to safeguard the electrical system against surges or short circuits that could cause damage.

    As soon as an abnormal flow of electricity is detected, the fuse “blows” (cuts off the circuit) to stop current from reaching the battery, motor, or other sensitive components.

    Fuse placement varies widely across different electric bikes, as it depends on the specific design and model. Typically, you'll find it inside the battery case or near the controller, though some premium models feature an external fuse box for easier access.

    In general, these fuses are rated to match the bike’s electrical system; for example, a 48 V e-bike might use a fuse in the 20–30 amp range. They are often simple automotive-style blade fuses or cylindrical glass fuses.

    Imagine the fuse as the safety net of your e-bike: its purpose is to prevent serious electrical issues from occurring and to keep your bike running as intended.

    How Do I Know If My Electric Bike Battery Fuse is Blown?

    A blown fuse can lead to various noticeable problems with your e-bike. Some indications that might show it has happened include:

    • E-bike Not Turning On: An indicator of a blown fuse can be detected if your e-bike suddenly refuses to power on, even though its battery has been fully charged. Nothing lights up on the display – a classic sign that power isn’t reaching the system due to a fuse blow.

    • Motor Not Responding: Another telltale sign is when a motor refuses to respond even though its display indicates full battery power. A failed fuse could have cut power to the motor and left it non-responsive, disrupting power delivery to it.

    • Charging Issues: If your e-bike isn’t charging properly (for example, the charger stays green or the battery never seems to fill up), a blown fuse in the charging circuit could be the culprit, preventing power from reaching the battery.

    To confirm a suspected blown fuse, you’ll need to access and inspect the fuse itself.

    A telltale sign is a broken metal strip inside the fuse’s casing or burn marks indicating it has failed. However, sometimes a fuse can appear intact even when it’s blown.

    The most reliable check is to use a multimeter on the fuse. If you set the multimeter to test continuity (or resistance) and get no reading (no continuity) across the fuse, then the fuse has indeed blown – it must be replaced with a good fuse to restore functionality.

    How to Change an E-bike Battery Fuse

    Replacing the fuse on an e-bike may be a simple process, but requires careful handling. Here is a step-by-step guide on how to safely change out your fuse:

    • Start By Switching Off the Bike: First and foremost, always ensure your e-bike is completely turned off and disconnected from its charger to avoid any chance of electrical shock.

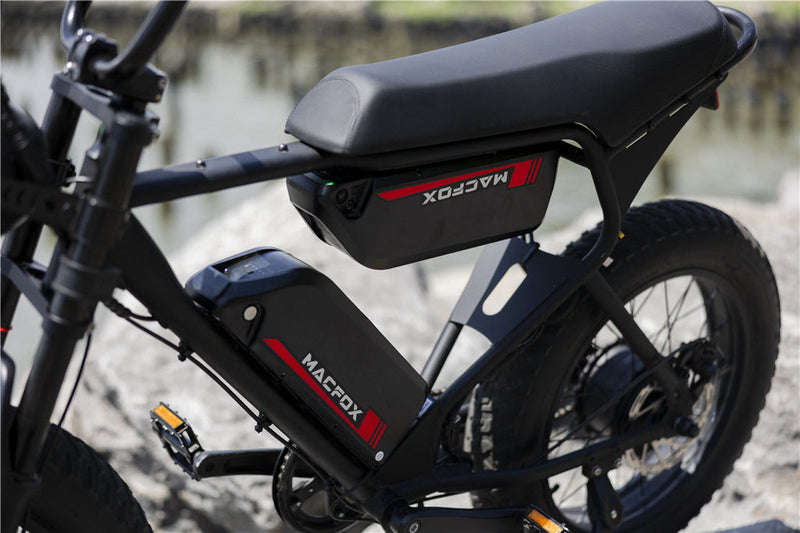

    • Locate the Fuse: Find your bike’s fuse compartment. As noted, it’s often inside the battery pack or in the controller box area. You may need to open a panel or remove the battery to access it, depending on the model. Consult your manual for the exact location if unsure.

    • Remove the Fuse: Open the fuse holder or compartment carefully. Use a plastic fuse puller or insulated tweezers to gently extract the old fuse. Avoid using metal tools directly on the fuse or contacts, as you might accidentally short the terminals.

    • Replace With a New Fuse: Obtain a new fuse of the same type and rating as the one you’re replacing. (For example, if the bike came with a 30A 58V blade fuse, use the exact same specifications in the replacement.) Push the new fuse firmly into the holder in place of the old one. Do not substitute a different amperage – using a higher or lower rated fuse can cause electrical issues or insufficient protection.

    • Reassemble: Close up the fuse compartment or battery case and ensure any covers or panels are secured back in place. If screws or clips were removed, put them back tightly. An unsecured fuse or cover could pose problems during riding (e.g. water ingress or physical damage).

    • Test Your Bike: Power your e-bike on again. If it turns on and functions normally (and the issue that led you to check the fuse is resolved), this indicates the blown fuse was indeed the cause. Always carry the blown fuse with you until you dispose of it properly – sometimes it’s helpful for showing a technician if further issues persist.

    Read more: E-bike Battery Showdown: 36V or 48V, What’s Better?

    Safety Precautions

    Working with electrical components on an e-bike requires taking necessary precautions for its protection, and here are a few key considerations:

    • Always Power Off the E-bike: Before you do anything with the fuse or other electrical parts, make sure the e-bike is completely powered off. Disconnect it from the charger to prevent electrical shocks.

    • Use Appropriate Tools: Always utilize proper tools, like a fuse puller, to uninstall and install fuses. Avoid placing metal tools directly onto electrical components to decrease the risk of short-circuiting.

    • Wear Protective Gear: When working with electrical parts, wearing rubber gloves provides extra protection from electric shocks. Also avoid wearing metal jewelry which could come into contact with battery terminals accidentally.

    • Verify the Fuse Rating: Double-check that the new fuse matches the old one’s specifications (voltage and amperage). Replacing a fuse with one of a higher rating defeats the safety purpose (the circuit may not break in time), and using one with a lower rating could cause it to blow again immediately under normal load.

    • Secure the Fuse Cover: After replacing the fuse (or any repair), ensure that the fuse holder cover, battery case, and any panels are properly closed and latched. Riding with an improperly closed battery or fuse compartment can lead to vibrations loosening connections or allow water/dirt inside, causing damage.

    • Do Not Bypass the Fuse: Never attempt to ride the e-bike with a bypassed fuse (for example, do not wrap a blown fuse in foil or insert a wire in its place). Bypassing removes the protection the fuse provides and can lead to serious electrical damage or fire in the event of a surge or short.

    How Do You Reset an Electric Bike?

    Sometimes an e-bike may behave erratically or display errors that a simple reset can fix. Resetting essentially reboots the bike’s electronic control system. Here’s a general reset procedure:

    • Power off Completely: Turn off the e-bike using its power switch/key. Make sure no charger is plugged in and the bike’s display is fully off.

    • Disconnect Your Battery: If the battery is removable, unlatch it and take it off the bike. If not removable, you may have a main power connector or switch – turn that off or disconnect it. Leave the bike without the battery for 5–10 minutes. This waiting period allows any residual charge in the electronics to dissipate.

    • Reconnect the Battery: After a few minutes, reattach the battery securely to the bike (or turn the master switch back on). Ensure it clicks in place and the connectors are secure.

    • Power On: Turn the e-bike on as normal. In many cases, this process will have cleared any minor electronic glitches, and the bike will operate normally again.

    Note: Some e-bikes have a dedicated reset button or specific sequence (such as holding down certain display buttons) to reset the system. Always refer to your user manual for model-specific reset instructions. The above process is a universal method that essentially power-cycles the bike’s electronics to restore default operation.

    Why Is My E-bike Motor Not Responding?

    If the motor on your e-bike isn't responding, several issues could be to blame:

    • Blown a fuse: Always check this first. A blown main fuse will cut power to the motor (and usually the whole bike), so if the motor won’t run at all, confirm the fuse is intact before investigating further.

    • Controller Failure: The controller is the “brain” that sends power to the motor. If it malfunctions (due to water damage, overheating, etc.), the motor may stop responding entirely. A failed controller often needs repair or replacement.

    • Wiring of the Motor: Inspect the wiring harness from the battery to the controller and from the controller to the motor. A loose connector or frayed wire can interrupt power or signal to the motor. Sometimes, simply reseating connectors or fixing a pinched wire can resolve the issue.

    • Throttle or Sensor Problems: If your e-bike uses a throttle, a faulty throttle can prevent the motor from activating (e.g. a stuck or broken throttle output may read zero). Similarly, for pedal-assist bikes, a malfunctioning pedal sensor (PAS sensor) could fail to detect pedaling.

    • Brake Sensor Engaged: Many e-bikes have brake levers with built-in cut-off switches that kill the motor when you pull the brakes. If one of these sensors is stuck or misaligned, the bike might wrongly “think” you are braking and thus won’t power the motor. Ensure your brake levers fully release and the cut-off switches disengage.

    • Pedal-Assist Sensor Fault: For e-bikes that rely on pedal assist, check the magnet ring and sensor near the crank. If this cadence or torque sensor is damaged or out of alignment, the controller may not detect that you are pedaling, and so it won’t activate the motor.

    In summary, start with the simple things (blown fuse, loose wires, brake sensors), and then consider more involved components like the controller or throttle.

    Identifying why the motor isn’t responding may require a bit of troubleshooting, but these are the most common areas to examine.

    Do E-bikes Still Work When the Battery Dies?

    Yes – you can still ride an e-bike with a completely dead battery, but it effectively becomes a regular bicycle at that point.

    Most e-bikes allow the pedals to directly drive the rear wheel via the chain, so you aren’t stranded if the battery dies mid-ride.

    Keep in mind, however, that e-bikes are heavier than standard bikes due to the motor and battery, so pedaling without any assist will be more challenging (especially on hills).

    In practical terms, riding with no battery is useful for getting home in a pinch or continuing a ride after you’ve exhausted your charge, but you’ll need to pedal harder and go slower.

    It’s a good idea to turn off the e-bike’s electronics when the battery is dead to eliminate any drag from the motor’s freewheel mechanism.

    Think of it as riding a heavy bicycle: you’ll still reach your destination, just with a bit more effort and time.

    How Do I Know If My E-bike Battery Needs to Be Replaced?

    Battery health is key to your e-bike’s performance, and over time all batteries will degrade. Here are some telltale signs that your battery might need replacing:

    • Reduced Range: You notice that, on a full charge, you can travel significantly fewer miles than you used to. For example, if you previously got 30 miles of assist and now only get 15–20, that drop in range indicates the battery’s capacity has decreased.

    • Long Charging Times: The battery takes much longer to charge than it did originally. If a charge that once took 4 hours is now taking 8+ hours to reach full, the battery may be struggling to accept charge (a sign of cell aging).

    • Physical Damage: Any visible swelling of the battery pack, bulging sides, leakage, or odd smells are immediate red flags – the battery should not be used further and needs replacement. Physical deformation often means cell damage inside, which can be dangerous.

    • Frequent Power Drops: The bike suddenly loses power or cuts out even when the display shows charge remaining. This could indicate the battery’s voltage is sagging under load due to internal resistance. If the bike hits a hill or you demand high power and it dies quickly, the battery might be failing.

    • Age and Charge Cycles: Consider the battery’s age and usage. Most lithium-ion e-bike batteries are rated for about 500–1000 full charge cycles with proper care. If you’ve had the bike for several years and used it heavily, the battery could simply be at the end of its service life. After about 3–5 years of regular use, many batteries start to show significant capacity loss. In this case, a noticeable drop in performance is expected even if you haven’t observed the above symptoms yet.

    If one or more of these symptoms match your battery’s behavior, it’s likely time to evaluate a replacement battery.

    Always source a replacement that is compatible with your e-bike (voltage, mount type, and dimensions should match, or be an official upgrade from the manufacturer).

    Do not continue using a battery that shows physical damage or severe performance issues, as it could fail completely (and abruptly) at an inopportune time.

    How Can You Tell if a Power Fuse is Blown?

    Most e-bike fuses are housed in a transparent plastic or glass casing, which makes it easier to inspect them. To tell if such a power fuse is blown, look at the metal filament inside the fuse.

    If the filament is broken or you see charred/burned marks inside the glass, the fuse has likely blown and needs replacement. In contrast, a healthy fuse will have an intact metal strip connecting its two end caps with no discoloration.

    For a definitive check, use a multimeter to test the fuse’s continuity.

    Remove the fuse and touch the multimeter probes to each end of the fuse. If the multimeter does not beep or show a zero/low resistance reading, it means there is no continuity – the fuse is open (blown) and should be replaced.

    If it does show continuity (closed circuit), then the fuse itself is fine, and your issue lies elsewhere.

    Always replace a blown fuse with an identical new one of the same amperage and voltage rating.

    If the new fuse blows immediately upon reinstalling and powering the bike, do not keep replacing it – this indicates a deeper electrical problem (like a short circuit) that needs to be fixed before you put another fuse in.

    How Do I Fix My E-bike Not Charging?

    If your e-bike is not charging up as expected (for instance, the charger light stays green and the battery doesn’t charge, or nothing happens when plugged in), run through these troubleshooting steps:

    • Check the Outlet and Charger Indicator: First, verify that the wall outlet you’re using has power (plug in another device or try a different outlet). Next, check the charger’s LED indicators (if applicable).



      Typically, when you plug a charger into the wall, you’ll see a green light, and when you connect it to a battery in need of charge, it turns red (charging mode).

      If you connect your charger to the battery and the charger’s light stays green (and never turns red), it could mean the battery is already full or the charger isn’t actually charging the pack.

      If no lights come on at all, the charger itself may be faulty – in that case, you might need to replace the charger or have it tested.

    • Verify the Charger: Ensure that the charger is functioning as intended. Feel the charger after it’s been plugged in for a while – is it warm? A warm charger is a sign it’s doing work. You can also test the charger by using a multimeter to check its output voltage, or by seeing if it will charge a different battery (if you have access to one with the same voltage). This helps determine if the issue lies with the charger or the battery.

    • Examine the Battery: Inspect the battery for any obvious issues. Is the battery’s charge port clean and free of debris? Do you notice any damage on the battery casing or contacts? Sometimes dirt or corrosion on the contacts can prevent charging – give the contacts a wipe with a clean, dry cloth. Also ensure the battery is properly seated on the bike (if it charges through the bike’s wiring harness); a loose connection could prevent charging.

    • Check Fuse: As discussed earlier, many e-bike batteries have an internal fuse. A blown fuse in the battery or charging circuit will prevent the battery from charging. If your bike has a charging fuse (sometimes separate from the main discharge fuse), inspect and replace it if needed.

    • Battery Connections: If your battery is removable, make sure that when you reattach it to the bike, it locks in securely. A loose battery connection might charge intermittently or not at all. Listen for the click of the locking mechanism and ensure the battery is pressed fully into the receptacle. If your battery charges through a port on the bike, check that the port’s wiring to the battery is intact.

    After going through these steps, try charging the bike again. If it still won’t charge, the problem could be more complex – possibly an issue with the battery’s internal Battery Management System (BMS) or the charger port wiring. At this point, it’s advisable to seek professional help or contact the e-bike manufacturer’s support.

    Do not disassemble the battery pack on your own, especially if you suspect a BMS fault, as lithium batteries can be dangerous if mishandled.

    A technician can properly diagnose and repair or replace the faulty components.

    Is There a Fuse in an Electric Motor?

    Generally, no – e-bike motors themselves do not contain user-serviceable fuses. The motor is protected by the main fuse (located by the battery/controller) which safeguards the entire high-current system, including the motor.

    If the motor is drawing too much current (due to a stall or steep hill, for example), the main fuse will blow to protect the motor and controller together.

    That said, some advanced or high-power e-bike systems may include additional protection for the motor, such as thermal cut-offs or electronic current limiting in the controller.

    In larger electric vehicles (like scooters or motorcycles), you might find individual fuses or circuit breakers for different subsystems (including motors). But on a typical consumer e-bike, you won’t find a separate fuse embedded in the hub motor or mid-drive motor housing.

    The assumption is that if the motor encounters a severe electrical fault, the main fuse will handle it, or the motor will simply stop functioning and require service.

    In summary, the fuse protecting your motor is the same one protecting your battery and controller. There’s no need to look for a fuse “inside” the motor – if your motor isn’t working due to an electrical issue, check the main fuse and the controller electronics.

    Maintenance Tips

    • Regularly inspect your tires, brakes, and drivetrain components to catch wear or damage early and maintain peak performance.

    • Keep the bike clean by gently washing with a bucket or low-pressure hose and avoid high-pressure jets that can force water into bearings.

    • Lubricate the chain and pivot points every few weeks or after wet rides, wiping away excess oil to prevent grime buildup.

    • Check and tighten frame and accessory bolts monthly using a torque wrench to the manufacturer’s recommended settings to prevent parts loosening.

    • Maintain battery health by storing it at moderate charge indoors, avoiding full discharge, and using the proper charger at room temperature.

    • Ensure brake pads and rotors remain clean and aligned for reliable stopping power—wipe rotors with isopropyl alcohol when needed.

    Conclusion

    Understanding the role of the fuse in an electric bike is integral to maintaining and troubleshooting its electrical system. A periodic check of your fuse, battery, and other components will help detect issues more easily while prolonging its lifespan.

    If you ever need assistance diagnosing or fixing an electrical issue on your e-bike, professional advice should always be sought before trying anything yourself. Good handling and maintenance practices help to keep your ride secure and reliable at all times.

    FAQs

    Where is the fuse on an electric bike?

    The fuse is usually inside the battery case or near the controller, depending on the e-bike model.

    In many designs, you’ll find the fuse by opening the battery compartment; in others it can be in the controller box.

    Always refer to your bike’s manual for the exact fuse location, as it can vary.

    How do I know if my e-bike fuse is blown?

    A blown fuse often results in the e-bike not powering on, or the motor not running despite the battery being charged, or the battery not charging properly.

    Essentially, if electrical power isn’t flowing where it should, the fuse is a prime suspect. To confirm, you would inspect the fuse for a broken filament or test it with a multimeter as described above – no continuity means the fuse has blown.

    Can I ride my e-bike if the fuse is blown?

    No – if the main fuse is blown, it interrupts the electrical circuit and prevents the e-bike from functioning.

    The bike won’t receive power to its motor (and usually the display won’t even turn on), so it behaves as if it’s “dead.” You will have to replace the fuse with a good one before your e-bike can run normally again.

    Riding without a proper fuse isn’t possible (and bypassing the fuse is dangerous, as mentioned). In the meantime, you could pedal the bike like a regular bicycle to get home, but none of the electrical components will work until the fuse is replaced.
