Hey there, fellow ebike enthusiasts! Today, I'm going to walk you through something that might seem intimidating at first but is actually pretty straightforward - changing your e-bike's disc brake pads. If you've been taking your bike to the shop for this simple maintenance task, it's time to save some money and learn to do it yourself!
Important Note About Brake Systems
Before we dive in, let's talk about compatibility. E-bikes typically come with either mechanical or hydraulic disc brakes:
- Mechanical Disc Brakes: These work with cables, similar to traditional bike brakes. They're more common on entry to mid-level e-bikes and easier to maintain at home. For example, the Macfox X1S electric commuter bike uses mechanical disc brakes, which makes it a great choice for riders who prefer simple, user-serviceable components.
- Hydraulic Disc Brakes: These use brake fluid to transfer force and provide stronger stopping power. They're typically found on higher-end e-bikes and might require professional maintenance. The Macfox X2 electric mountain bike features hydraulic disc brakes, offering superior stopping power for more demanding off-road conditions.
While this guide focuses primarily on mechanical disc brakes, the pad replacement process is similar for both types. However, with hydraulic systems like those found on the X2, you'll need to be extra careful not to squeeze the brake lever when the pads are removed, as this can introduce air into the system and require a professional bleeding service.
Pro Tip: If you're not sure which type of brakes your e-bike has, here's an easy way to tell: look at the brake lever. If there's a visible cable running from it, you have mechanical brakes like the X1S. If there's no visible cable but rather a sealed hose, you have hydraulic brakes like the X2.
Read more: Hydraulic vs Mechanical
How Do You Know It's Time for New Brake Pads?
Here are some telltale signs:
- Your brakes feel "mushy" or less responsive
- You need to pull the brake lever further than usual
- You hear squealing or metallic scratching sounds when braking
- Your brake pads are thinner than 1.5mm (about the width of a grain of rice)
Pro tip: Don't wait until your brakes start failing! Regular inspection can prevent unsafe riding conditions and save you from more expensive repairs down the road.
What You'll Need
Let's gather our tools first:
- New brake pads (make sure they're compatible with your specific brake model)
- 5mm Allen key/hex wrench
- Needle-nose pliers
- Clean rags
- Rubbing alcohol (isopropyl 99% if possible)
- Optional: brake pad spreader or flat-head screwdriver
Step-by-Step Guide
- Preparation (5 minutes)
- Clean your work area
- Turn your bike upside down or put it on a stand
- Remove the wheel for easier access (optional but recommended)
- Important: Take a photo of your current setup for reference!
- Remove the Old Pads (10 minutes)

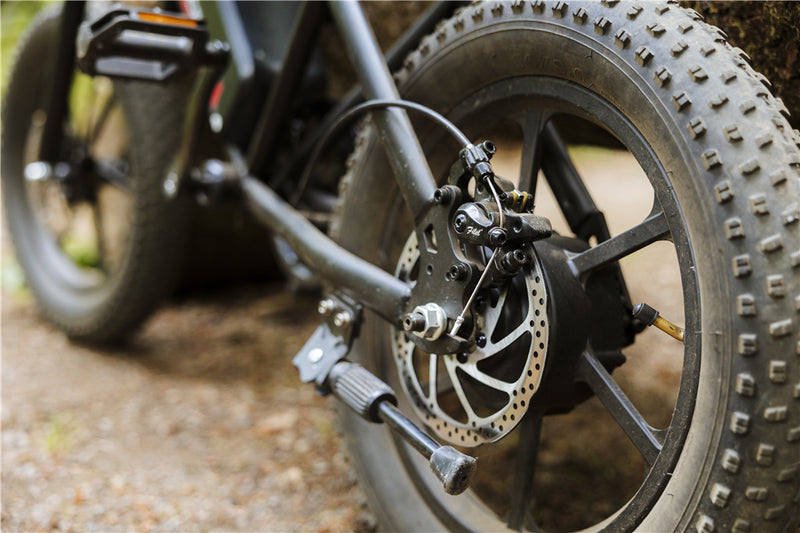

a) Locate the brake caliper (that's the part that clamps onto your disc)
b) Find the cotter pin (it looks like a small metal pin with a loop at one end)
c) Using your pliers, carefully straighten the bent end of the cotter pin
d) Pull out the pin - don't lose it, you'll need it again!
e) The old pads should now slide right out
- Install the New Pads (10 minutes)
a) Check your new pads - notice the spring clip between them
b) Squeeze the pads together gently
c) Slide them into the caliper (the spring should face towards the inside of the bike)
d) Line up the holes and reinsert the cotter pin
e) Bend the end of the pin to secure it (about 90 degrees is perfect)
- Final Steps (5 minutes)
a) If you removed the wheel, put it back on
b) Give the wheel a spin - it should rotate freely without rubbing
c) Test the brakes while the bike is stationary
d) Do a slow test ride in a safe area
Understanding the Break-in Process
The break-in period for new brake pads is crucial for optimal performance, and here's why:
- Surface Conditioning: New brake pads and rotors need to develop a smooth, even contact surface. This process is called "bedding in" and creates a thin layer of transfer material between the pad and rotor.
-
How to Break In New Pads:
- Find a safe, traffic-free area
- Accelerate to about 15 mph
- Brake firmly (but not completely) to about 5 mph
- Immediately accelerate back to 15 mph
- Repeat this process 20 times
- Allow the brakes to cool completely before regular use
-
Why It Matters: Proper break-in:
- Increases stopping power
- Reduces brake noise
- Extends pad life
- Prevents glazing and uneven wear
Common Mistakes to Avoid
- Don't touch the braking surface! Your fingers have oils that can contaminate the pads. If you accidentally touch them, clean with rubbing alcohol.
- Don't squeeze the brake lever when the pads are out. This can cause the pistons to overextend (especially important for hydraulic systems).
- Don't reuse worn pads. Once they're worn down, they're done. No shortcuts here - safety first!
- Don't skip the break-in period. It might seem tedious, but it's essential for optimal brake performance.
Pro Tips
🔧 Maintenance Schedule: Check your brake pads every 500 miles or if you notice any change in braking performance.
🔧 Weather Matters: Wet conditions wear brake pads faster, so check more frequently if you ride in the rain.
🔧 Pad Selection: Consider your riding style when choosing replacement pads:
- Organic pads: Quieter, better initial bite, but wear faster
- Metallic pads: Last longer, better wet performance, but might be noisier
- Semi-metallic: A good balance between the two
Troubleshooting
Having issues after installation? Here are some common problems and solutions:
- Squealing brakes: Usually means the pads need breaking in or they're contaminated. Try the break-in procedure first.
- Rubbing disc: The caliper might need realignment. Loosen the mounting bolts, hold the brake, and retighten.
- Uneven wear: Could indicate the caliper needs alignment or the rotor is bent.
- Poor stopping power: Ensure you've completed the break-in process properly. If issues persist, check rotor condition.
When to See a Professional
While brake pad replacement is generally DIY-friendly, seek professional help if you:
- Notice any cracks or damage to your brake rotors
- Experience brake fluid leaks (hydraulic systems)
- Feel uncertain about any step in the process
- Have completed the installation but something doesn't feel right
Final Thoughts
Changing your e-bike's brake pads isn't rocket science, but it is important to do it right. Take your time, follow these steps carefully, and you'll save money while keeping your ride safe and smooth. Remember, if you ever feel unsure, there's no shame in visiting your local bike shop - better safe than sorry when it comes to brakes!
Want to save this guide for later? Feel free to bookmark it or print it out for your garage. Happy riding, and stay safe out there! 🚲
Got questions? Drop them in the comments below - I'm always happy to help fellow riders maintain their e-bikes!
FAQs
How do I know when to replace my e-bike’s brake pads?
If your brakes feel mushy, make squealing sounds, or the pads are thinner than 1.5mm, it’s time to replace them.
Can I reuse old brake pads?
No, once brake pads are worn down, they should be replaced for safety reasons.
Do I need to remove the wheel to change the brake pads?
It’s optional but recommended for easier access to the brake caliper and pads.
