Electric bikes (e-bikes) have transformed how we commute and enjoy cycling.
As interest in e-bikes increases, so too does curiosity over its components that ensure it works optimally - one such key piece being the Hall sensor.
This blog post delves into what Hall sensors are, their function on electric bikes, and why knowing more about them will enrich your e-biking experience.
Introduction to Hall Sensors
Edwin Hall, an American physicist, made a significant contribution to the development of Hall sensors. These magnetic field detection sensors, known as Hall sensors, have found widespread use in automobile manufacturing, industrial machinery, and consumer electronics due to their reliable performance and precision.
Hall sensors play a crucial role in electric bikes as they accurately monitor rotating components such as the motor's rotor. This information is vital for its proper functioning and efficient operation. By tracking it accurately, Hall sensors help the controller match motor output to throttle and pedal-assist input.
Hall sensors are often chosen because they are non-contact, meaning they can sense movement without physical contact, thus reducing wear and tear on components. This feature makes Hall sensors especially helpful when used on electric bikes where components may constantly move around under various environmental conditions.
How Hall Sensors Work in Electric Bikes
Hall sensors work by sensing magnetic fields produced by magnets attached to the rotating parts of an e-bike's motor. When these magnetic fields pass by a Hall sensor, it generates a voltage corresponding to their strength - this voltage is then used by its controller to determine motor positioning and speed.
Imagine your e-bike as a well-tuned orchestra, with the Hall sensors as the conductor. These sensors, arranged around the stator, provide real-time feedback to the controller, enabling it to precisely regulate the current supply to its windings. This orchestration ensures smooth acceleration, efficient power usage, and optimal motor performance, giving you a ride that's always in harmony.
Feedback from Hall sensors is integral for motor controllers to make real-time adjustments when pedaling or using the throttle, using data collected by Hall sensors to make real-time adjustments to motor speed and torque settings. This ensures a more responsive riding experience.
On many hub-motor e-bikes, including fat tire electric bike models, Hall sensor feedback is what lets the controller start the motor smoothly from a standstill.
-
Key Functions of Hall Sensors in E-Bikes:
- Position Detection: Hall sensors help in detecting the exact position of the motor's rotor. This is essential for the proper timing of the motor's phases, ensuring smooth operation.
- Speed Control: They assist in regulating the speed of the motor. By knowing the rotor's position and speed, the controller can adjust power delivery for smooth acceleration and deceleration.
- Efficiency Optimization: Hall sensors contribute to the overall efficiency of the motor by providing precise control inputs. Efficient motor control leads to better battery life and extended range.
Read more: Electric Bike Disc Brake Adjustment
Technical Details of Hall Sensors
Let's delve into the technical details of Hall sensors. Edwin Hall discovered the Hall effect in 1879. This effect occurs when current flows through an electric conductor within a magnetic field, resulting in a Hall voltage that is perpendicular to both. This voltage is directly proportional to the magnetic field strength and can be measured to make precise measurements.
On electric bikes, Hall sensors use this phenomenon to accurately assess the position and speed of their motor's rotor. They typically consist of semiconductor materials like gallium arsenide or indium antimonide that respond well to magnetic fields.
Hall sensors used on electric bikes come in analog and digital. Analog Hall sensors produce a continuous voltage output proportional to magnetic field strength. In contrast, digital Hall sensors emit an on/off signal when their magnetic field exceeds certain thresholds.
Positioning of Hall sensors within a motor is of critical importance. Three Hall sensors should typically be spread 120 degrees apart around its stator to accurately control its operation and pinpoint the rotor position at any given moment. This setup enables precise management of all aspects of its performance.
Visual Aids for Understanding Hall Sensors
To better comprehend how Hall sensors function, consider these visual aids:

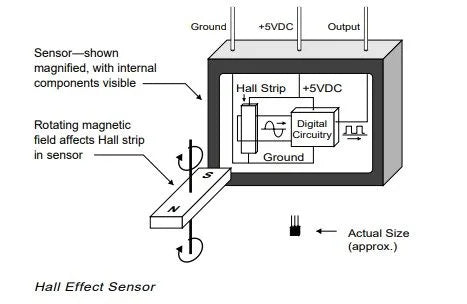

Hall Effect Principle
This diagram shows current flowing through a conductor inside a magnetic field. The field pushes the moving charges to one side, creating a small Hall voltage across the conductor that is proportional to the field strength.
Placement of Hall Sensors in an E-Bike Motor
This illustration depicts the typical placement of Hall sensors around an electric bike motor's stator. Three sensors are typically arranged 120 degrees apart to provide accurate feedback regarding rotor position.
Analog vs. Digital Hall Sensors
Comparative diagram demonstrating the distinctions between analog and digital Hall sensors. Analog sensors produce continuous output, while digital ones generate binary outputs.
Signs a Hall Sensor May Be Failing
A faulty Hall sensor or a damaged sensor wire usually shows up in how the motor starts and runs. Common signs include:
- Jerky or stuttering starts: the motor shudders or pulses from a standstill instead of pulling smoothly.
- Grinding noise or vibration from the hub when you apply throttle at low speed.
- Weak power or cutting out under load, even with a charged battery.
- A motor or Hall error code on the display.
Before blaming the sensor, check the simpler causes: a loose or wet motor connector, a pinched cable near the axle, or a battery that is low or not seated properly. Our guide to fixing a jerking hub motor walks through these checks. Replacing Hall sensors means opening the motor, so if the problem continues on a Macfox e-bike, contact Macfox support with your model and order number before taking the hub apart.
Conclusion
Understanding hall sensors is not just about knowing your electric bike better; it's about taking control of your ride. These sensors are the key to efficient and reliable operation, providing precise feedback about motor position and speed.
Knowing how they work also makes it easier to describe a problem clearly to a technician or to Macfox support, which speeds up the fix.
FAQs
What is a Hall sensor in an electric bike?
A Hall sensor detects the position and speed of the motor's rotor, ensuring smooth and efficient operation.
How do Hall sensors improve e-bike performance?
They provide precise control over the motor, enhancing acceleration, reliability, and energy efficiency.
What are common issues with Hall sensors?
The most common issues are damaged or loose sensor wiring and connectors, moisture in the motor, and a failed sensor. They usually show up as jerky starts, noise or vibration at low speed, or a motor error code.
